LBM2016TR82JV

Fixed Inductors Overview

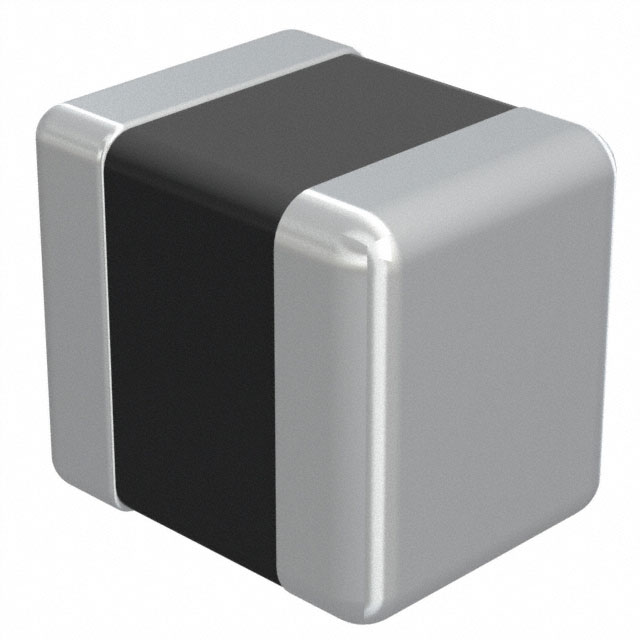

The Taiyo Yuden LBM2016TR82JV is a fixed surface-mount inductor with an inductance of 820 nH and a tolerance of ±5%. It utilizes a ferrite drum core construction and operates at a test frequency of 25.2 MHz. The component features a maximum DC resistance of 3.4 ohms and a self-resonant frequency of 170 MHz. Rated for a current of 100 mA, it measures 2.00 mm in length, 1.60 mm in width, and has a maximum seated height of 1.80 mm.

Fixed Inductors Feature Summary

• Drum core wirewound construction using ferrite material
• High self-resonant frequency capability
• Surface mount package design

Fixed Inductors Applications

• RF circuit filtering
• Signal line chokes
• General purpose electronic circuits

Fixed Inductors Procurement Notes

Verify the specific suffix 'J' confirms the ±5% tolerance requirement and 'V' indicates tape and reel packaging configuration. Ensure the operating temperature range aligns with system requirements, as standard ratings typically extend to 105°C. Cross-reference the manufacturer datasheet for precise electrical limits under varying environmental conditions before finalizing procurement specifications.

Fixed Inductors Selection Notes

Select this component when a compact 0806 footprint is required for high-frequency applications demanding tight inductance tolerance. The ferrite core provides effective noise suppression while maintaining stability. Evaluate the 100 mA current rating against peak load currents to prevent saturation issues in the target circuit topology.

Fixed Inductors Part Context

This part belongs to the LBM series of fixed inductors from Taiyo Yuden. The series offers various inductance values within the 0806 (2016 metric) package size. These components are designed for general-purpose use in consumer electronics and communication devices requiring reliable surface-mount solutions.

Fixed Inductors FAQ

What is the self-resonant frequency of the LBM2016TR82JV?

The self-resonant frequency is specified as 170 MHz.

Does this inductor have shielding?

The LBM2016TR82JV is classified as a semi-shielded inductor.
