LBP.2450.X.B.30

Overview

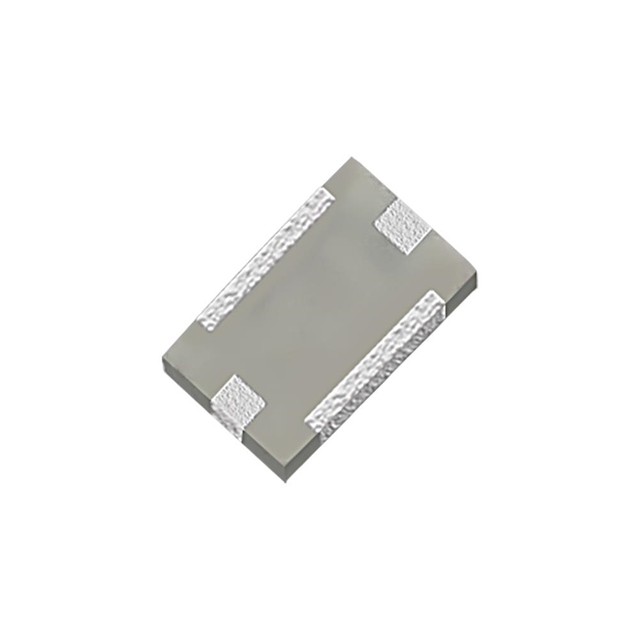

The LBP.2450.X.B.30 is a surface-mount LTCC band pass RF filter manufactured by Taoglas Limited. It features a center frequency of 2.45GHz and a bandwidth of 100MHz, with an insertion loss of 1.5dB. The component utilizes an 0805 (2012 Metric) package configuration with four pads for mounting. Designed for high-density PCB layouts, it offers excellent solderability and visual inspection capabilities.

Feature Summary

• High-performance LTCC construction for reliable RF filtering
• Optimized for high-density PCB layout applications
• Excellent solderability and easy visual inspection capability

Applications

• Embedded wireless communication systems
• IoT device RF front-ends
• Bluetooth and Zigbee modules

Procurement Notes

Verify the specific suffix designation to ensure correct bandwidth and performance characteristics. Confirm that the 0805 footprint matches your PCB design requirements. Check for any customization options if standard specifications do not meet unique application needs. Ensure compatibility with surface mount assembly processes.

Selection Notes

Select this component when a compact 0805 form factor is required for 2.45GHz filtering. Consider the 100MHz bandwidth and 1.5dB insertion loss against system sensitivity requirements. Evaluate the LTCC technology benefits for thermal stability and size constraints compared to ceramic or SAW alternatives.

Part Context

This part belongs to Taoglas' LBP series of LTCC band pass filters. The series includes variants such as LBP.2450.X.A.30 and LBP.2450.X.C.30, which may differ in bandwidth or specific electrical parameters while sharing similar packaging and core technology.

Replacement Considerations

Direct substitutes are not explicitly listed in public documentation. Verify pinout and electrical equivalence with other 0805 LTCC band pass filters from different manufacturers before substitution.
