LBP.2450.X.C.30

Overview

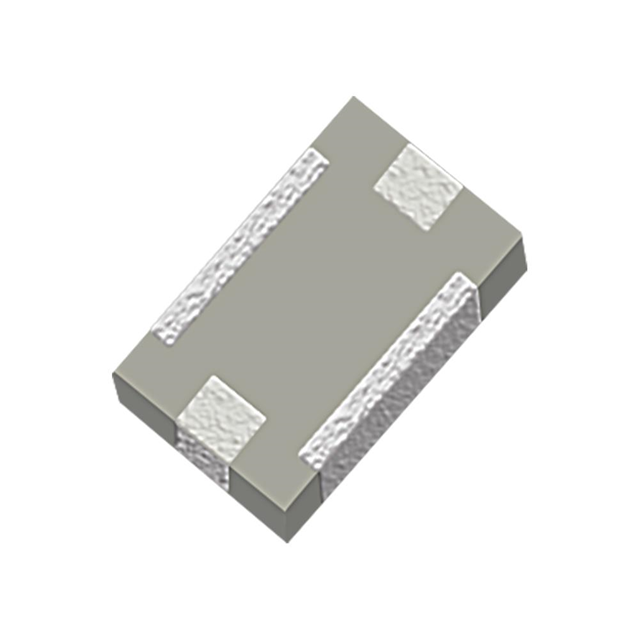

The LBP.2450.X.C.30 is a surface-mount LTCC band pass filter designed for the 2.4 GHz ISM band. It features a center frequency of 2450 MHz with a bandwidth of 100 MHz and operates at a nominal impedance of 50 Ohms. The component exhibits an insertion loss of 1.5 dB and supports a maximum operating temperature of +85°C. Its physical dimensions are 2.00mm x 1.25mm x 1.15mm, suitable for compact RF circuit integration.

Feature Summary

• Utilizes Low Temperature Co-fired Ceramic (LTCC) technology for robust signal filtering.

Applications

• Wireless LAN modules
• Bluetooth devices
• ISM band applications

Procurement Notes

Verify the specific suffix 'C' against official Taoglas documentation to confirm exact electrical tolerances and pin configurations. Ensure compatibility with standard surface mount reflow profiles. Confirm that the 50 Ohm impedance matches the system design requirements before procurement.

Selection Notes

Select this component when a compact LTCC solution is required for 2.45 GHz filtering. Consider the 1.5 dB insertion loss impact on link budget. Verify thermal stability up to +85°C meets environmental specifications. Compare footprint constraints against available PCB space.

Part Context

This part belongs to the LBP.2450 series of LTCC band pass filters from Taoglas Limited. These components are engineered for high-reliability wireless communications. The series offers standardized performance for common ISM band frequencies while allowing customization for specific customer needs upon request.

Replacement Considerations

Consult official Taoglas substitution guides for verified equivalents. Generic replacements may not match the precise LTCC construction or 1.5 dB insertion loss specification. Verify mechanical footprint compatibility if considering alternative manufacturers.
