LBP.5410.Z.A.30

Overview

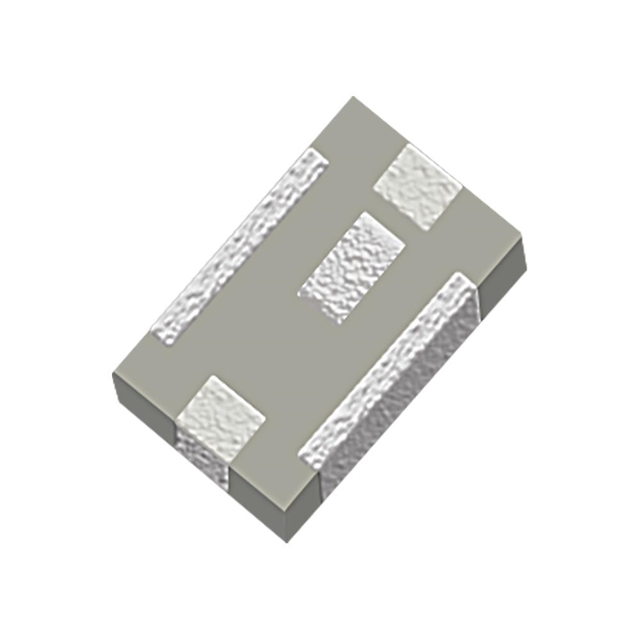

The LBP.5410.Z.A.30 is a surface-mount LTCC bandpass RF filter manufactured by Taoglas Limited. It operates with a center frequency of 5410 MHz and provides a bandwidth of 1020 MHz, covering the range from 4900 to 5920 MHz. The component exhibits a low insertion loss of 1.5 dB. It utilizes an 0805 (2012 Metric) package with dimensions of 2.00mm x 1.25mm and a maximum height of 0.79mm.

Feature Summary

• Utilizes Low-Temperature Co-fired Ceramic (LTCC) technology for high-density PCB layout integration.
• Features excellent solderability and supports easy visual inspection during assembly.
• Designed for surface mount applications with a compact 0805 footprint.

Applications

• RF filtering in wireless communication systems
• Signal conditioning in microwave circuits
• Integration into compact electronic modules requiring precise frequency selection

Procurement Notes

Verify the specific ordering suffix and packaging configuration when sourcing this component. Confirm that the received parts match the 0805 package dimensions and LTCC construction specified in the official datasheet. Ensure compliance with RoHS directives as indicated in manufacturer documentation before final procurement approval.

Selection Notes

Select this filter for applications requiring a 5410 MHz center frequency with a 1020 MHz bandwidth. The 1.5 dB insertion loss makes it suitable for sensitive RF paths. The 0805 surface-mount package facilitates automated assembly and space-constrained designs. Verify impedance matching requirements against system specifications prior to implementation.

Part Context

This component belongs to the Taoglas LBP series of LTCC bandpass filters. The series includes variants such as the LBP.2450.X.C.30 for different frequency bands. These filters are engineered for robust performance in demanding RF environments, offering reliable signal integrity through ceramic-based construction.

Replacement Considerations

Direct substitutes within the same family include other LBP series filters like the LBP.2450.X.C.30, provided the frequency requirements align. Cross-referencing datasheets is essential to ensure equivalent insertion loss and bandwidth characteristics before substitution.
