Product Detailed Parameters
- Description：IC MOTOR DRVR 2.6V-3.6V 30WLCSP
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Bulk
- Motor Type - Stepper：-
- Motor Type - AC, DC：-
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (6)
- Interface：I2C
- Technology：CMOS
- Step Resolution：-
- Applications：Image Stabilization
- Current - Output：220mA
- Voltage - Supply：2.6V ~ 3.6V
- Voltage - Load：2.6V ~ 3.6V
- Operating Temperature：-
- Mounting Type：Surface Mount

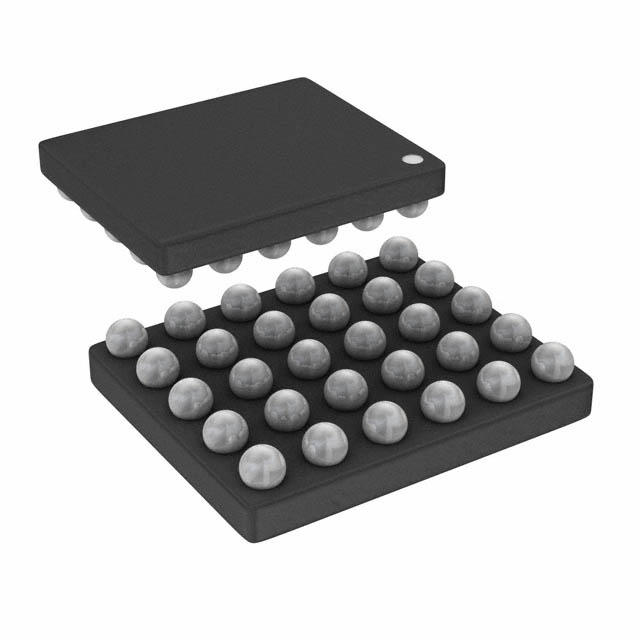

- Package / Case：30-XFBGA, WLCSP
- Supplier Device Package：30-WLCSP (2.59x1.99)
- Grade：-
- Qualification：-
Download product information
Overview
The LC898122AXA-VH is a CMOS-based Optical Image Stabilization and Auto Focus Controller & Driver manufactured by onsemi. It operates within a supply voltage range of 2.6V to 3.6V. The component is housed in a 30-XFBGA, WLCSP package.
Feature Summary
- Integrated controller and driver for optical image stabilization systems
- Integrated controller and driver for auto focus mechanisms
- CMOS technology implementation
Applications
- Optical image stabilization control
- Auto focus system driving
Procurement Notes
Verify the specific suffix VH against current onsemi documentation to confirm package and compliance details. Check Material Composition Declaration (MCD) documents for RoHS and REACH status. Confirm availability as product status may change; contact an authorized distributor or account manager for current supply information.
Selection Notes
Select this component when designing systems requiring integrated OIS and AF control with I2C interface capabilities. Ensure the design supports the specified 2.6V to 3.6V supply voltage range. Verify that the 30-XFBGA WLCSP package fits the PCB layout constraints.
Part Context
This part belongs to the LC89812 series of motor drivers and controllers from onsemi. It is categorized under power management ICs specifically designed for motor driver applications. The device integrates control logic with driver stages for precision actuator management.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material.
