Product Detailed Parameters
- Description：IC MOTOR DVR OIS AF 27WLCSP
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR),Bulk
- Motor Type - Stepper：-
- Motor Type - AC, DC：Brushed DC
- Function：Driver - Fully Integrated, Control and Power Stage
- Output Configuration：Half Bridge (6)
- Interface：Parallel
- Technology：CMOS
- Step Resolution：-
- Applications：Image Stabilization
- Current - Output：-
- Voltage - Supply：2.6V ~ 3.3V
- Voltage - Load：1.7V ~ 3.3V
- Operating Temperature：-30°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：27-XFBGA, WLCSP
- Supplier Device Package：27-WLCSP (3.89x1.3)
- Grade：-
Download product information
Overview

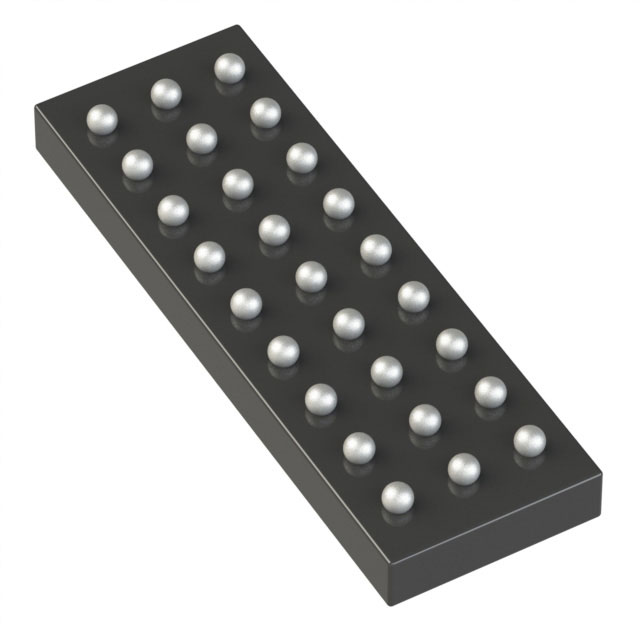

The LC898124EP2XC-MH is a fully integrated motor driver IC designed for optical image stabilization (OIS) and autofocus applications. It operates within a supply voltage range of 2.6V to 3.3V and utilizes a CMOS process technology. The device features a parallel interface for control communication and is housed in a 27-WLCSP package with dimensions of 2x2 mm. It integrates both the control logic and power stages required for driving motors in compact mobile imaging systems.
Feature Summary
- Fully integrated design combining control logic and power stage drivers
- Optimized for optical image stabilization and autofocus motor control
- Supports parallel interface for system communication
- Compact 27-wafer-level chip scale package
Applications
- Optical Image Stabilization (OIS) systems
- Autofocus (AF) motor control
- Mobile camera modules
- Smartphone imaging subsystems
Procurement Notes
Verify component authenticity through authorized onsemi distributors or certified partners. Confirm package marking and lot codes against official datasheets. Ensure storage conditions comply with moisture sensitivity level requirements prior to reflow soldering. Validate compatibility with existing PCB layout and firmware interfaces before final integration.
Selection Notes
Select this component for applications requiring integrated OIS and AF motor control in space-constrained mobile devices. The parallel interface suits systems where pin count optimization is critical compared to serial alternatives. Consider the 2.6V to 3.3V operating range for compatibility with low-voltage mobile processors and battery-powered architectures.
Part Context
This part belongs to onsemi's portfolio of motor drivers and controllers specifically engineered for consumer electronics. It falls under the PMIC category, focusing on precision motion control for imaging sensors. The WLCSP packaging reflects industry trends toward miniaturization in smartphone and tablet camera modules.
Replacement Considerations
The LC898124EP3XC-MH is documented as a similar replacement option by onsemi. Verify electrical parameters and pinout compatibility before substitution. Review any functional differences in control interfaces or drive capabilities between the original and substitute parts.
