Product Detailed Parameters
- Description：IC MOTOR DVR OIS AF 30WLCSP
- Series：-
- Mfr：onsemi
- Package：Tape & Reel (TR)
- Motor Type - Stepper：Bipolar
- Motor Type - AC, DC：Brushed DC
- Function：Driver
- Output Configuration：Half Bridge
- Interface：SPI
- Technology：-
- Step Resolution：-
- Applications：General Purpose
- Current - Output：130mA, 200mA
- Voltage - Supply：2.7V ~ 3.3V
- Voltage - Load：1.8V ~ 3.3V
- Operating Temperature：-30°C ~ 85°C
- Mounting Type：Surface Mount

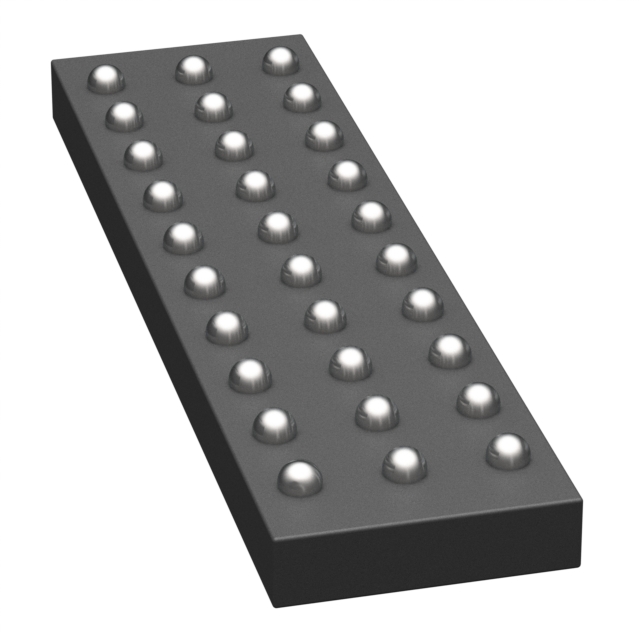

- Package / Case：30-XFBGA, WLCSP
- Supplier Device Package：30-WLCSP (1.18x4.3)
- Grade：-
- Qualification：-
Download product information
Overview
The LC898128DP1XHTBG is an OIS and Open-AF Control LSI manufactured by onsemi. It operates within a supply voltage range of 2.6 V to 3.3 V and supports an output current capability up to 3300 mA. The device functions as a motor driver IC designed for camera module applications, specifically handling optical image stabilization and autofocus actuation. It features a surface-mount package configuration suitable for compact electronic assemblies.
Feature Summary
- Integrated control logic for Optical Image Stabilization (OIS) mechanisms
- Supports Open-Autofocus (Open-AF) actuator management
- Designed for low-voltage mobile camera system integration
Applications
- Smartphone camera modules requiring OIS functionality
- Mobile devices with integrated autofocus systems
- Compact digital imaging hardware
Procurement Notes
Verify the specific suffix 'XHTBG' against the manufacturer's official ordering information to ensure correct tape-and-reel packaging and temperature grade specifications. Confirm that the component matches the required RoHS compliance standards for your assembly process. Cross-reference the datasheet revision date to ensure compatibility with your design timeline and check for any recent errata or application notes related to the LC898128 series.
Selection Notes
Select this component when designing camera systems that require dedicated LSI control for both OIS and Open-AF actuators. Ensure the host processor can interface with the required communication protocols specified in the electrical characteristics. Verify that the operating temperature range of -30°C to 85°C aligns with the environmental requirements of the target device. Consider the power supply constraints of 2.6 V to 3.3 V during system architecture planning.
Part Context
This part belongs to onsemi's portfolio of specialized image sensor and camera control peripherals. It complements other components in mobile imaging solutions by providing precise actuator control. The LC898128 series is engineered to support high-performance camera modules found in modern consumer electronics, focusing on stability and focus accuracy.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult onsemi directly for potential alternatives or updated product line recommendations.
