LCAT1000-09

Overview

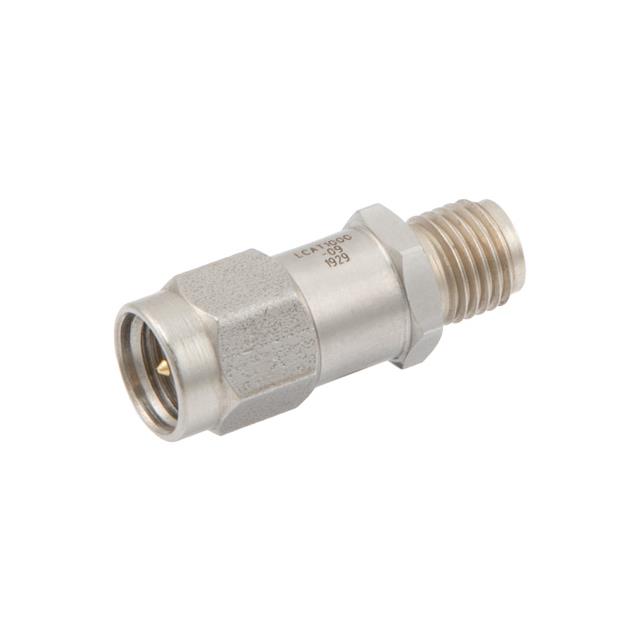

The LCAT1000-09 is a coaxial in-line RF fixed attenuator manufactured by L-com. It provides a nominal attenuation of 9 dB across a frequency range from DC to 6 GHz. The component features SMA male and SMA female connectors for seamless integration into signal chains. It supports an input power rating of 2W and maintains a characteristic impedance of 50 Ohms. Constructed with a stainless steel body, the unit includes a hex nut for secure installation.

Feature Summary

• Coaxial in-line design with SMA male and female connectors
• Stainless steel housing with hex nut for mechanical stability
• Fixed 9 dB attenuation performance within specified frequency limits

Applications

• RF signal chain attenuation
• Test and measurement equipment
• Telecommunications systems

Procurement Notes

Verify that the required attenuation value matches the specific application needs, as this model provides a fixed 9 dB reduction. Confirm connector compatibility by ensuring the system utilizes SMA interfaces. Check the maximum input power rating against operational levels to prevent damage. Review the frequency range specifications to ensure coverage up to 6 GHz meets project requirements.

Selection Notes

Select this component when a precise 9 dB reduction is necessary between DC and 6 GHz frequencies. The 50 Ohm impedance ensures proper matching in standard RF environments. Consider the physical dimensions and mounting requirements associated with the in-line module format. Evaluate the 2W power handling capacity relative to the expected signal levels in the circuit.

Part Context

This part belongs to the LCAT series of passive RF components from L-com. These attenuators are designed for reliable performance in various electronic applications. The series offers different attenuation values and connector types to suit diverse system architectures. This specific model represents a standard solution for signal level adjustment in coaxial networks.

Replacement Considerations

Consult manufacturer documentation for direct equivalents. Verify that any substitute maintains identical 9 dB attenuation, 50 Ohm impedance, and SMA connectivity. Ensure replacement parts support the same DC to 6 GHz frequency range and 2W power rating.
