LCAT1000-10

Overview

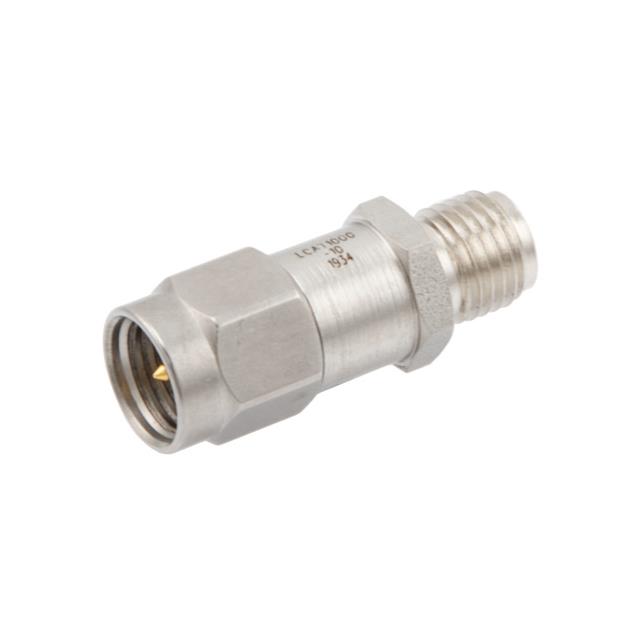

The LCAT1000-10 is a coaxial in-line RF fixed attenuator manufactured by L-com. It features SMA male to SMA female connectors and a passivated stainless steel body with a hex nut for secure installation. The component provides a nominal attenuation of 10 dB with a tolerance of ±0.5 dB. It operates within a frequency range of DC to 6 GHz, handles up to 2 Watts of power, and maintains a 50 Ohm impedance. The design ensures stable signal reduction for precision applications.

Feature Summary

• Coaxial in-line design with SMA male and female interfaces
• Passivated stainless steel construction for durability
• Stable 10 dB attenuation with high precision

Applications

• Instrumentation systems
• Precision measurements
• Production test environments

Procurement Notes

Verify the specific model suffix matches the required attenuation value. Confirm connector gender compatibility with existing cable assemblies. Ensure operating frequency and power levels remain within the specified DC to 6 GHz and 2W limits. Check datasheet for detailed mechanical dimensions and mounting requirements before integration.

Selection Notes

Select this component when a precise 10 dB signal reduction is required between DC and 6 GHz. The 50 Ohm impedance matches standard RF systems. The stainless steel body offers robustness for industrial use. Consider the SMA interface type for compatibility with existing connector infrastructure.

Part Context

This part belongs to the LCAT1000 series of RF fixed attenuators from L-com. The series offers various attenuation values while maintaining consistent electrical performance and mechanical form factors. All units share the same SMA interface and stainless steel housing design.

Replacement Considerations

Compatible substitutes include other LCAT1000 series variants with different attenuation values if the specific dB requirement changes. Cross-brand replacements must match the 50 Ohm impedance, DC-6 GHz frequency range, and SMA connector types.
