LCAT1000-30

Overview

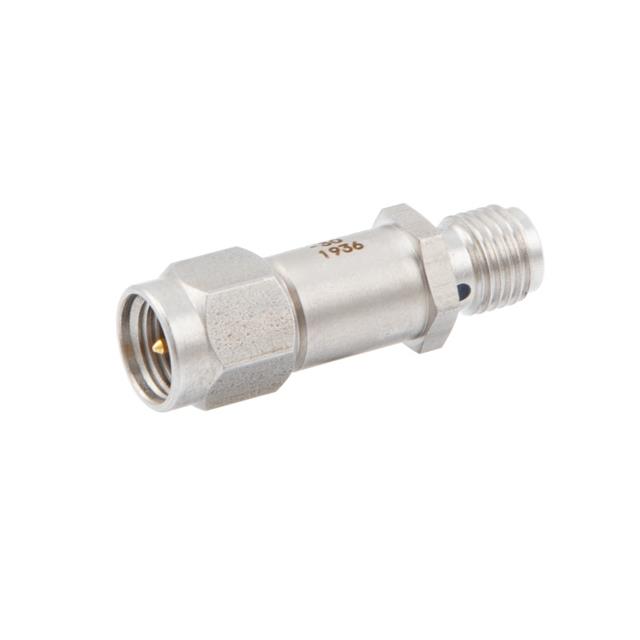

The LCAT1000-30 is a fixed RF attenuator manufactured by L-com, designed for coaxial in-line applications. It provides a precise attenuation value of 30 dB across a frequency range of DC to 6 GHz. The component features a 50 Ohm impedance and is rated for a power handling capacity of 2 Watts. It utilizes SMA connectors, specifically configured with an SMA male connector on one end and an SMA female connector on the other, ensuring compatibility with standard RF systems.

Feature Summary

• Coaxial in-line design with hex nut on the body for secure mounting
• Fixed 30 dB attenuation value for signal level control
• Operates from DC up to 6 GHz frequency range
• SMA male to SMA female connector configuration

Applications

• RF signal path attenuation in wireless communication systems
• Test and measurement equipment requiring precise signal reduction
• Circuit protection by reducing input power levels
• Impedance matching in 50 Ohm RF networks

Procurement Notes

Verify the part number LCAT1000-30 against official L-com documentation to confirm the 30 dB attenuation, 2W power rating, and SMA male-to-female configuration. Ensure the frequency range specification matches the application requirements of DC to 6 GHz. Cross-reference manufacturer datasheets for accurate electrical parameters and mechanical dimensions before procurement.

Selection Notes

Select this component when a fixed 30 dB attenuation is required within a 50 Ohm system operating up to 6 GHz. The 2W power rating suits moderate power levels. The SMA male-to-female interface dictates connector compatibility. Consider the hex nut body style for installation stability. Verify that the specific connector gender combination aligns with the existing cable assembly or port configuration.

Part Context

The LCAT1000 series represents L-com's line of fixed RF attenuators. The LCAT1000-30 is a specific variant within this family, distinguished by its 30 dB attenuation value. Other models in the series may offer different attenuation values or frequency ranges, such as the LCAT1001 series which operates up to 3 GHz. This part is categorized under RF and Wireless Attenuators.

Replacement Considerations

Direct substitutes must match the 30 dB attenuation, 50 Ohm impedance, 2W power rating, and SMA male-to-female interface. Verify frequency range compatibility (DC to 6 GHz). Check mechanical dimensions and hex nut style for physical fit. Ensure the replacement component is sourced from authorized distributors to guarantee authenticity.
