LCAT1001-01

Overview

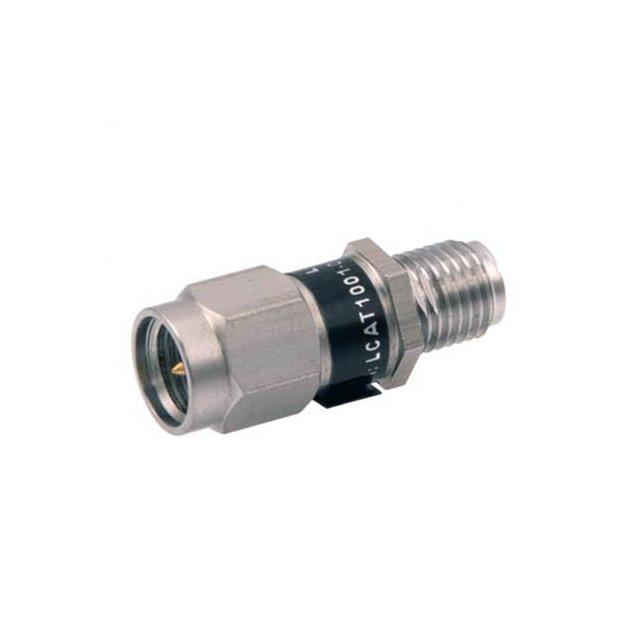

The LCAT1001-01 is a fixed RF attenuator manufactured by L-com, designed for operation within a frequency range of DC to 3 GHz. It provides a precise attenuation value of 1 dB with a power handling capacity of 2 Watts. The component utilizes SMA connectors, featuring a male plug on one end and a female jack on the other, facilitating direct series integration into transmission lines. Constructed from stainless steel, it offers durability in demanding environments. The device operates at a characteristic impedance of 50 Ohms, ensuring signal integrity across its specified bandwidth.

Feature Summary

• Provides stable 1 dB attenuation performance
• Handles up to 2 Watts of RF power
• Features SMA male-to-female connector interface
• Constructed from durable stainless steel housing

Applications

• RF signal level adjustment in test and measurement setups
• Impedance matching in microwave communication systems
• Signal conditioning in wireless infrastructure equipment
• Integration into coaxial cable assemblies for attenuation requirements

Procurement Notes

Verify the specific part number suffix against official L-com documentation to confirm connector gender configuration and material specifications. Ensure the operating frequency does not exceed 3 GHz and power levels remain within the 2 Watt limit. Cross-reference datasheets for VSWR and return loss values if critical signal integrity is required. Confirm environmental ratings match application conditions.

Selection Notes

Select this component when a fixed 1 dB reduction is required in a 50 Ohm system operating below 3 GHz. The SMA interface suits standard coaxial connections. Consider the stainless steel construction for robustness. Evaluate thermal management needs given the 2 Watt power rating. Compare against variable attenuators if adjustable attenuation is ever needed.

Part Context

This model belongs to L-com's line of RF fixed attenuators, which are passive components used to reduce signal amplitude without distortion. These devices are essential for protecting sensitive receivers and maintaining proper signal levels in RF chains. The LCAT series typically offers various attenuation values and connector types to meet diverse industry standards.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Users should consult L-com technical support or authorized distributors for equivalent models with compatible electrical parameters and mechanical interfaces.
