LCAT1001-02

Overview

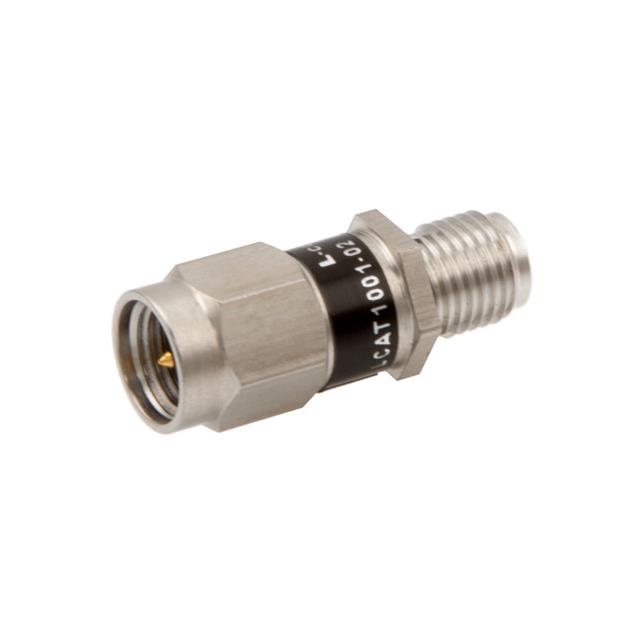

The LCAT1001-02 is a fixed RF attenuator manufactured by L-com, designed for signal reduction in radio frequency circuits. It provides an attenuation value of 2 dB with an accuracy of ±0.5 dB. The component operates within a frequency range from DC to 3 GHz and features a 50 Ohm impedance. It supports a maximum input power of 2 Watts and maintains a Voltage Standing Wave Ratio (VSWR) of less than 1.15:1. The unit utilizes SMA male-to-female connectors and is housed in a stainless steel body.

Feature Summary

• Stainless steel construction ensures durability and shielding effectiveness
• SMA connector interface facilitates standard RF system integration
• Wide operating temperature range supports diverse environmental conditions

Applications

• RF signal path conditioning
• Test and measurement equipment
• Communication systems

Procurement Notes

Verify the specific datasheet version for the LCAT1001-02 to confirm current manufacturing status and compliance certifications. Ensure that the SMA connector gender configuration matches the system requirements. Cross-reference technical specifications against application needs to validate performance parameters before procurement.

Selection Notes

Select this model when a precise 2 dB attenuation is required within the 3 GHz bandwidth. The 2W power rating suits moderate signal levels. The SMA interface offers compatibility with common RF infrastructure. Consider the physical dimensions and mounting style if space constraints exist within the assembly.

Part Context

This component belongs to the L-com passive attenuator series, which includes various attenuation values and connector types. The LCAT1001 series typically features SMA interfaces and stainless steel bodies. These units are engineered for reliable performance in general-purpose RF applications requiring stable signal reduction.

Replacement Considerations

Equivalent models include the PE7402-2 from Pasternack and the ATT-0313-02-SMA-10 from Cinch Connectivity Solutions. Verify that substitute parts match the 2 dB attenuation, 2W power handling, and SMA connector specifications.
