LCAT1001-05

Overview

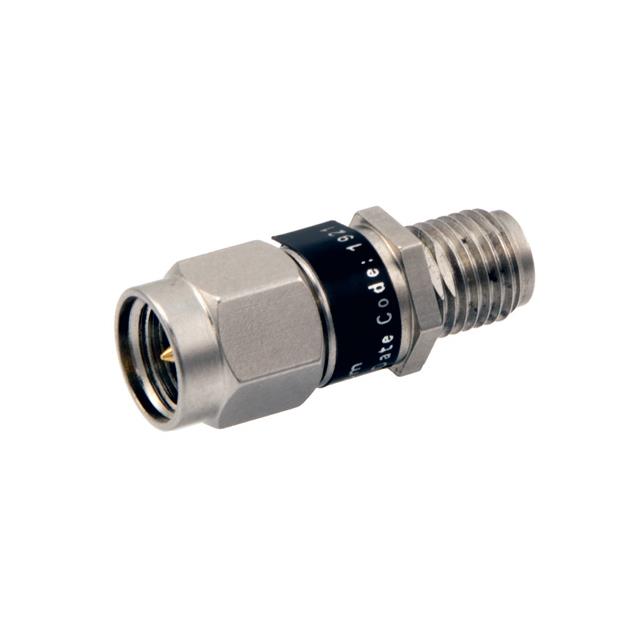

The LCAT1001-05 is a fixed RF attenuator manufactured by L-com, designed for signal reduction in radio frequency circuits. It provides an attenuation value of 5 dB with a power rating of 2W and operates within a frequency range of DC to 3 GHz. The component features a 50 Ohm impedance and utilizes SMA connectors in a male-to-female inline configuration. Constructed with a stainless steel body, it ensures durability and consistent performance across various environments.

Feature Summary

• Provides precise 5 dB signal attenuation for RF applications
• Operates reliably from DC up to 3 GHz frequency range
• Features robust stainless steel construction for environmental resilience
• Utilizes standard SMA male-to-female interface for easy integration

Applications

• RF test and measurement equipment signal conditioning
• Telecommunications system power level adjustment
• Industrial automation control circuit protection
• Research and development prototype testing setups

Procurement Notes

Verify the specific connector gender configuration matches the design requirements before ordering. Confirm that the operating temperature range aligns with the intended deployment environment. Ensure the power handling capacity meets the maximum expected signal levels to prevent component damage during operation.

Selection Notes

Select this model when a 5 dB attenuation value is required within the 3 GHz bandwidth. Consider the SMA interface compatibility with existing cable assemblies. Evaluate the 2W power rating against peak signal loads to ensure safe operational margins without overheating or signal distortion.

Part Context

This component belongs to the LCAT series of passive RF attenuators produced by L-com. These devices are engineered for high reliability in demanding electronic systems. The series offers various attenuation values and connector types to support diverse RF infrastructure needs across multiple industries.

Replacement Considerations

Equivalent parts include PE7405-5 from Pasternack and ATT-0313-05-BNC-10 from Cinch Connectivity Solutions, provided interface differences are addressed.
