LCAT1001-06

Overview

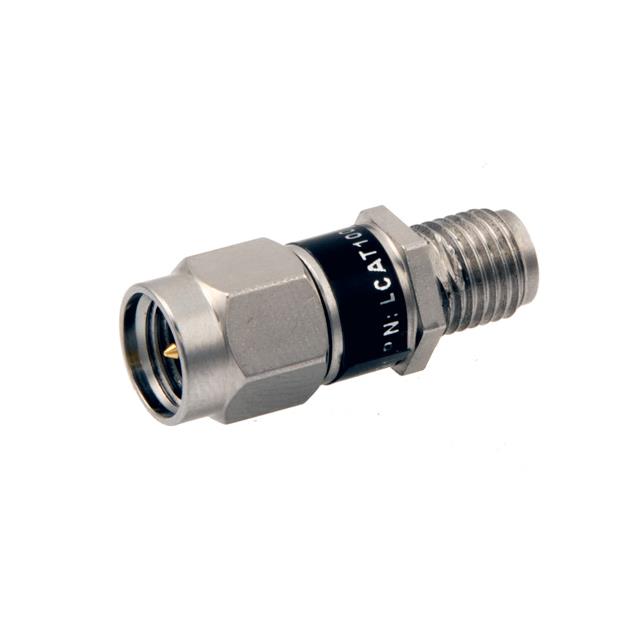

The LCAT1001-06 is a fixed RF attenuator manufactured by L-com, designed for interconnect applications within the DC to 3 GHz frequency range. It features a 50 Ohm impedance and supports a maximum power rating of 2 Watts. The component utilizes SMA male-to-female connectors for inline integration. Key electrical specifications include a nominal attenuation value of 6 dB and a Voltage Standing Wave Ratio (VSWR) of 1.4:1. The unit operates within a temperature range of -55°C to +85°C and weighs approximately 7 grams.

Feature Summary

• Provides precise signal attenuation in high-frequency RF circuits
• Ensures impedance matching through standardized 50 Ohm design
• Supports reliable operation across wide environmental temperature ranges

Applications

• RF test and measurement equipment signal conditioning
• Telecommunications system power level adjustment
• Wireless infrastructure component protection

Procurement Notes

Verify the specific connector gender configuration and attenuation tolerance against project requirements before ordering. Confirm that the operating frequency range up to 3 GHz aligns with system specifications. Ensure the 2W power handling capacity meets peak signal demands. Check for RoHS compliance documentation if required by regulatory standards. Validate physical dimensions for enclosure fitment.

Selection Notes

Select this model when a 6 dB attenuation value is required within the DC-3 GHz spectrum. Consider the SMA interface compatibility with existing cable assemblies. Evaluate the 2W power rating against maximum input signals. Compare VSWR performance against system return loss requirements. Assess thermal management needs given the passive construction and operating temperature limits.

Part Context

This component belongs to the LCAT series of connectorized attenuators from L-com. The series offers various attenuation values and connector types for RF interconnect solutions. These passive devices are engineered for stable performance in demanding electronic environments. The product line supports diverse connectivity needs across industrial and commercial sectors.

Replacement Considerations

Publicly confirmed substitute part numbers for LCAT1001-06 were not identified in available official documentation. Verify parameter equivalence carefully if considering alternatives from other manufacturers. Ensure replacement components match the SMA interface, 50 Ohm impedance, and 6 dB attenuation specification.
