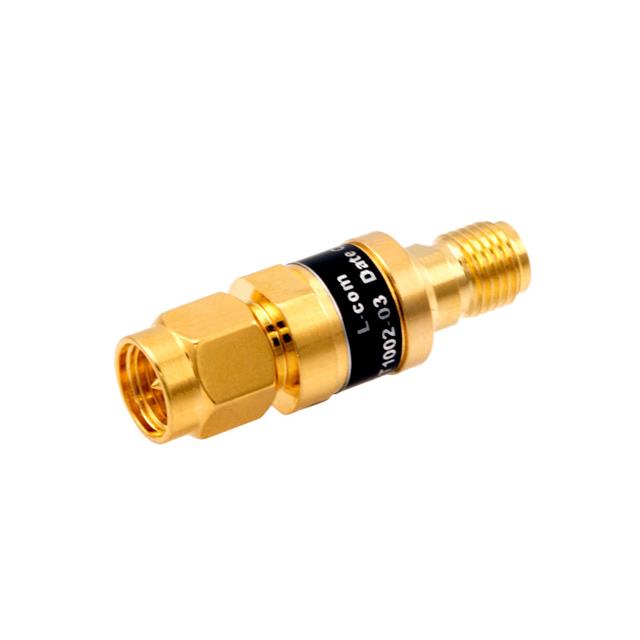

LCAT1002-03

$37.64

Description：DC-3GHZ 2W RF FIXED ATTENUATOR 3
Series：LCAT
Mfr：L-com
Package：Bag

SKU:400069b37078 Category: Attenuators Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DC-3GHZ 2W RF FIXED ATTENUATOR 3
Series：LCAT
Mfr：L-com
Package：Bag
Attenuation Value：3dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：SMA In-Line Module

Download product information

LCAT1002-03

Overview

The LCAT1002-03 is a fixed RF attenuator from the L-Com Passive series, designed for interconnect applications. It provides a nominal attenuation of 3 dB with a tolerance of ±0.5 dB across a frequency range of DC to 3 GHz. The component features SMA male-to-female connectors and operates at a maximum power rating of 2 Watts (CW). It maintains a VSWR of less than 1.2:1 and has an impedance of 50 Ohms. Constructed with a brass body, it supports operating temperatures from -55°C to +125°C.

Feature Summary

SMA connector interface for reliable signal transmission
Fixed 3 dB attenuation within specified tolerance
Operates effectively up to 3 GHz frequency range

Applications

RF signal path attenuation in test equipment
Impedance matching in microwave circuits
Signal level control in communication systems

Procurement Notes

Verify datasheet specifications against application requirements before purchase. Confirm connector gender and frequency limits match system design. Check environmental ratings for temperature compatibility. Ensure power handling meets peak signal levels. Validate manufacturer authenticity through authorized channels.

Selection Notes

Choose this model for low-frequency RF applications requiring precise 3 dB attenuation. Suitable for systems using SMA interfaces up to 3 GHz. Consider thermal management for continuous wave operation near 2W limit. Evaluate VSWR performance for sensitive signal integrity needs. Compare with higher/lower attenuation variants if signal reduction differs.

Part Context

Part of L-Com's passive connectorized attenuator line. Designed for general-purpose RF interconnects. Brass construction offers durability. Standard 50 Ohm impedance ensures compatibility with common RF infrastructure. Compact form factor aids integration.

Replacement Considerations

LCAT1002-07 provides 7 dB attenuation. LCAT1002-10 offers 10 dB attenuation. LCAT1006-01 uses SMA but covers DC-18GHz with 1 dB loss. Verify connector type and frequency range when substituting.
