LCAT1002-06

Overview

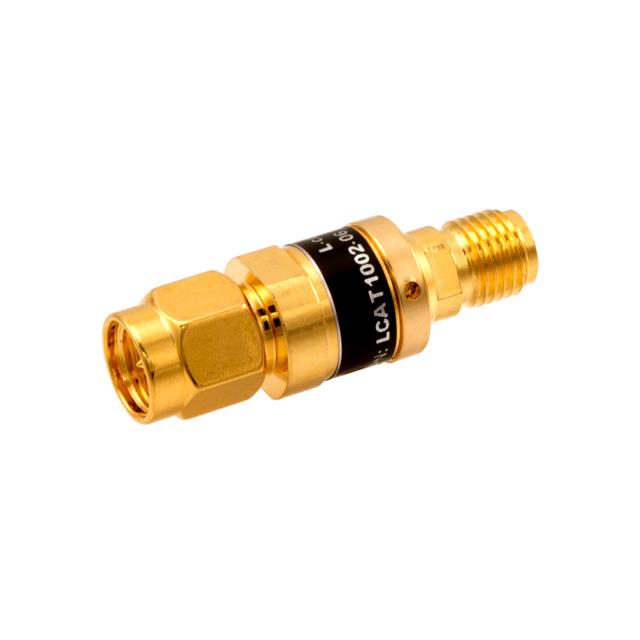

The LCAT1002-06 is a fixed RF attenuator manufactured by L-com, designed for signal reduction in coaxial systems. It provides an attenuation value of 6 dB with a power rating of 2 W. The device operates within a frequency range up to 3 GHz and maintains a 50 Ohm impedance. It features SMA male-to-female connectors and utilizes a gold-plated brass body for durability and conductivity.

Feature Summary

• Coaxial in-line design with SMA male and female connectors
• Gold-plated brass construction for corrosion resistance
• Fixed 6 dB attenuation at 2 W power handling

Applications

• RF signal level adjustment in test and measurement setups
• Impedance matching in microwave communication circuits
• Signal protection in high-frequency electronic systems

Procurement Notes

Verify the specific connector gender configuration and physical dimensions against system requirements before procurement. Confirm that the operating frequency does not exceed the 3 GHz limit. Ensure the power rating of 2 W aligns with the maximum expected signal power in the application to prevent component damage.

Selection Notes

Select this model when a precise 6 dB reduction is required within the sub-3 GHz spectrum. The SMA interface suits standard laboratory and industrial RF environments. Consider the gold-plated brass body for applications requiring robust mechanical stability and reliable electrical contact over repeated connections.

Part Context

This component belongs to the LCAT series of passive RF attenuators from L-com. These devices are engineered for consistent performance in broadband applications. The series offers various attenuation values and connector types to support diverse RF system architectures and signal conditioning needs.

Replacement Considerations

Substitutes must match the 6 dB attenuation, 2 W power rating, 50 Ohm impedance, and SMA connector type. Verify frequency response compatibility up to 3 GHz. Physical size and mounting constraints should also be evaluated to ensure interchangeability without system modification.
