LCAT1003-03

$52.40

Description：DC-3GHZ 2W RF FIXED ATTENUATOR 3
Series：LCAT
Mfr：L-com
Package：Bag

SKU:7fc6c1ed4fa0 Category: Attenuators Brand: L-com

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DC-3GHZ 2W RF FIXED ATTENUATOR 3
Series：LCAT
Mfr：L-com
Package：Bag
Attenuation Value：3dB
Frequency Range：0 Hz ~ 3 GHz
Power (Watts)：2W
Impedance：50 Ohms
Grade：-
Qualification：-
Package / Case：N-Type In-Line Module

Download product information

LCAT1003-03

Overview

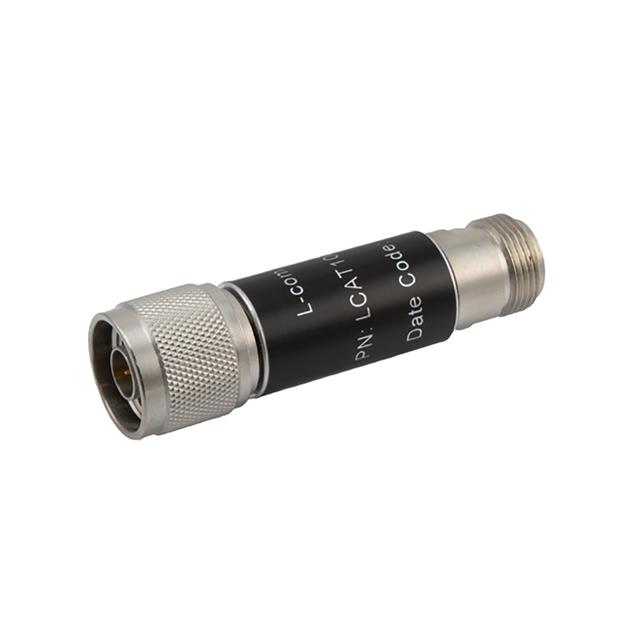

The LCAT1003-03 is a fixed RF attenuator manufactured by L-com. It provides a nominal attenuation of 3 dB across a frequency range of 0 Hz to 3 GHz. The component is rated for a maximum power handling capacity of 2 Watts and maintains a characteristic impedance of 50 Ohms. It utilizes N-type connectors, specifically featuring an in-line configuration with male-to-female interfaces. The physical construction includes a brass body with nickel plating.

Feature Summary

Provides fixed signal attenuation within the specified frequency band
Supports high power handling capabilities for robust operation
Features standard N-type connector interfaces for secure integration

Applications

RF system design
Signal level adjustment in wireless communication equipment
Test and measurement setups requiring precise attenuation

Procurement Notes

Verify the specific part number against official L-com documentation to confirm technical specifications. Ensure compatibility with existing system requirements regarding frequency range, power rating, and connector type before procurement. Cross-reference datasheets to validate performance characteristics and physical dimensions.

Selection Notes

Select this component when a fixed 3 dB attenuation is required at frequencies up to 3 GHz. Consider the 2W power rating and 50 Ohm impedance match for suitable applications. Verify that N-type connectors align with the system's interconnection needs and environmental conditions.

Part Context

This component belongs to the category of RF attenuators designed for signal management. It serves as a passive device to reduce signal amplitude without introducing significant distortion. The product line typically supports various attenuation values and connector types for diverse RF engineering applications.

Replacement Considerations

Consult official L-com documentation for direct substitute part numbers. Ensure any replacement matches the original specifications for attenuation value, frequency range, power handling, and connector interface to maintain system integrity.
