LCAT1003-06

Overview

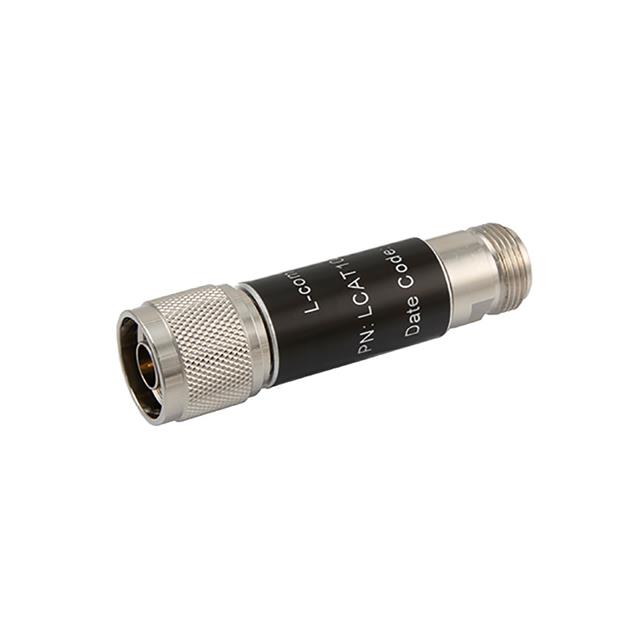

The LCAT1003-06 is a fixed RF attenuator from the L-Com Passive series, designed for interconnect applications. It provides a nominal attenuation of 6dB with a power rating of 2W and an impedance of 50 Ohms. The device operates within a frequency range of DC to 3 GHz. It utilizes N-type connectors in a male-to-female configuration. The unit weighs approximately 79.832 grams.

Feature Summary

• Provides stable signal attenuation for RF systems
• Supports high-power handling up to 2W
• Features durable N-type connector interface

Applications

• RF test and measurement setups
• Telecommunications equipment signal conditioning
• Industrial automation control systems

Procurement Notes

Verify part number accuracy against official L-Com documentation before ordering. Confirm that the N-type male-to-female configuration matches system requirements. Ensure the 2W power rating and 3 GHz frequency limit are sufficient for the specific application environment. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when a precise 6dB reduction is needed at frequencies up to 3 GHz. The 50 Ohm impedance ensures compatibility with standard RF infrastructure. Consider the physical dimensions and weight for integration into existing enclosures. Verify connector gender alignment with adjacent components to ensure proper mating.

Part Context

This model belongs to the L-Com Passive series of connectorized attenuators. It serves as a specialized interconnect solution for managing signal levels in radio frequency circuits. The product is categorized under general attenuators within the broader cable assembly and connectivity portfolio.

Replacement Considerations

ATT-0313-06-BNC-10 (Cinch Connectivity Solutions) and PE7437-6 (Pasternack) are listed as parameter equivalents. Verify connector type compatibility, as some substitutes may use BNC interfaces instead of N-type.
