LCAT1004-02

Overview

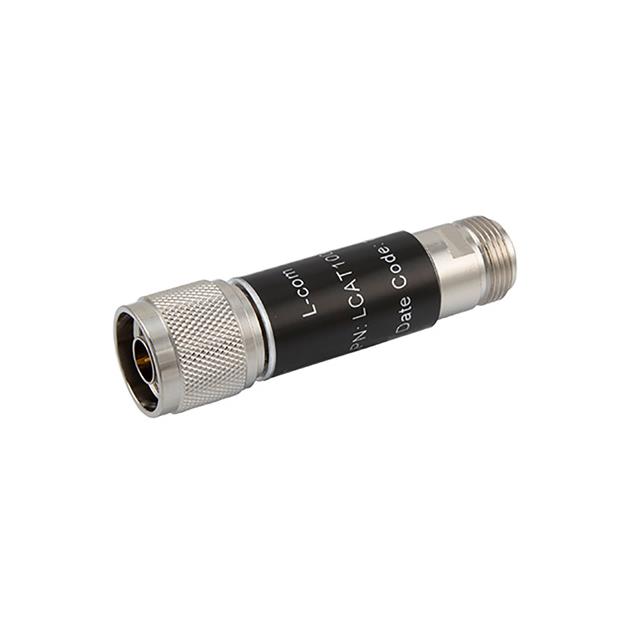

The LCAT1004-02 is a fixed RF attenuator manufactured by L-com, designed for in-line signal reduction. It features N-type male to female connectors and operates within a frequency range of DC to 6 GHz. The component provides a nominal attenuation value of 2 dB with a power handling capacity of 2 W. It maintains a system impedance of 50 Ohms and utilizes brass construction with nickel plating. This device serves as a passive interconnect solution for maintaining signal integrity in high-frequency applications.

Feature Summary

• Provides precise 2 dB signal attenuation across a wide bandwidth from DC to 6 GHz
• Features robust N-type male-to-female connector interface for secure in-line integration
• Constructed from brass with nickel plating to ensure durability and corrosion resistance

Applications

• RF signal level adjustment in communication systems
• Test and measurement equipment calibration
• Signal conditioning in microwave circuits

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing N-type connector interfaces in the target assembly. Check for RoHS compliance status if required by project specifications. Confirm that the 2W power rating aligns with the maximum expected signal power levels in the application environment to prevent component damage.

Selection Notes

Select this model when a 2 dB attenuation value is required within the DC to 6 GHz frequency spectrum. The N-type interface is suitable for applications requiring reliable, threaded connections. Consider the 2W power rating for moderate power handling needs. Verify that the 50 Ohm impedance matches the system requirements to minimize reflections and maintain signal quality throughout the transmission path.

Part Context

The LCAT1004-02 belongs to L-com's series of passive RF fixed attenuators. These components are engineered for consistent performance in radio frequency environments. The product line emphasizes reliability and precise attenuation values. This specific model integrates standard N-type connectors, making it compatible with common RF infrastructure and test setups used in industrial and commercial electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
