LCAT1004-04

Overview

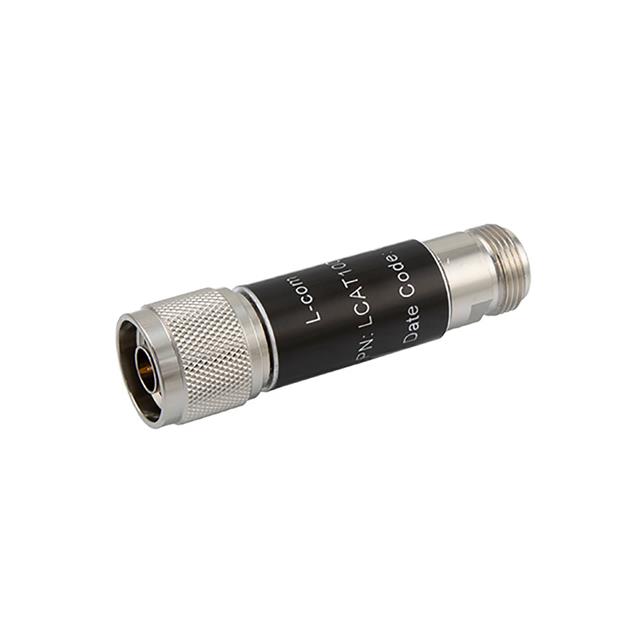

The LCAT1004-04 is a fixed RF attenuator manufactured by L-com, designed for signal level reduction in coaxial systems. It provides a precise attenuation value of 4 dB across a frequency range from DC to 6 GHz. The component features a 50 Ohm impedance and handles up to 2 Watts of power. It utilizes an inline module design with N-type male to N-type female connectors, ensuring compatibility with standard RF infrastructure.

Feature Summary

• Provides fixed 4 dB signal attenuation for RF applications
• Operates effectively from DC up to 6 GHz frequency range
• Features robust N-type male to female connector interface
• Supports high power handling capacity of 2 Watts

Applications

• RF signal level adjustment in communication systems
• Test and measurement equipment calibration
• Signal conditioning in wireless infrastructure

Procurement Notes

Verify the specific model suffix ensures the correct 4 dB attenuation value and 6 GHz upper frequency limit. Confirm connector gender configuration matches system requirements. Check datasheet for detailed VSWR and insertion loss specifications relevant to your operating frequency band before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 4 dB reduction is required within a 50 Ohm system. Ensure the application does not exceed the 2 Watt power rating or 6 GHz frequency limit. Consider the N-type connector interface for mechanical compatibility with existing cabling and test fixtures.

Part Context

This part belongs to the LCAT1004 series of fixed attenuators from L-com. The series offers various attenuation values while maintaining consistent electrical performance and physical form factor. The LCAT1004-04 specifically denotes the 4 dB variant within this lineup.

Replacement Considerations

Direct substitutes include other LCAT1004 series parts with different attenuation values if the dB requirement changes. Cross-brand replacements must match the 50 Ohm impedance, N-type connectors, 2W power rating, and 6 GHz frequency range.
