LCAT1004-07

Overview

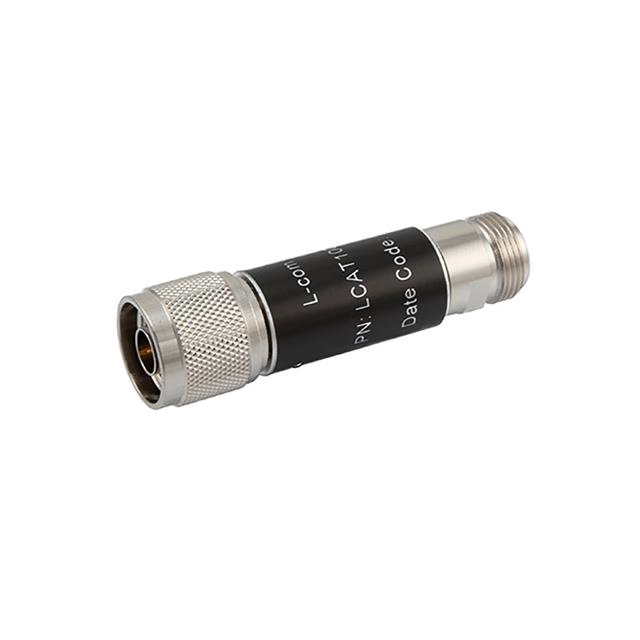

The LCAT1004-07 is a high-performance N-type coaxial fixed attenuator manufactured by L-com. It operates within a frequency range of DC to 6 GHz and provides a nominal attenuation value of 7 dB. The component supports a maximum power handling capacity of 2 Watts and maintains a characteristic impedance of 50 Ohms. It features an inline design with an N-type male connector on one end and an N-type female connector on the other, ensuring compatibility with standard RF cabling systems.

Feature Summary

• Provides precise signal reduction for broadband communication applications
• Features robust N-type male-to-female coaxial interface for secure connections
• Designed to prevent receiver saturation by lowering excessive signal levels

Applications

• Telecommunications infrastructure signal conditioning
• Radio frequency measurement and testing setups
• Industrial automation systems requiring signal integrity control

Procurement Notes

Verify that the specific part number LCAT1004-07 corresponds to the 7 dB attenuation variant within the LCAT1004 series. Confirm that the required operating frequency extends up to 6 GHz and that the 2W power rating meets system requirements. Ensure connectors match the N-type male/female configuration specified in official documentation before ordering.

Selection Notes

Select this model when a fixed 7 dB attenuation is required across a wide bandwidth up to 6 GHz. It is suitable for applications needing reliable signal level adjustment without variable tuning. Consider the 2W power handling limit and the physical dimensions of the N-type inline housing to ensure fit within the intended RF assembly or test bench environment.

Part Context

This component belongs to the L-com LCAT series of RF fixed attenuators, which are engineered for consistent electrical performance in demanding environments. The series offers various attenuation values and connector configurations to support diverse RF system architectures. The LCAT1004-07 specifically addresses needs for moderate signal reduction in high-frequency applications.

Replacement Considerations

Cross-reference with other LCAT series models offering 7 dB attenuation at 6 GHz if supply constraints exist. Verify that substitute parts maintain identical N-type male/female interfaces and 50 Ohm impedance to ensure seamless integration without adapter usage.
