LCAT1004-10

Overview

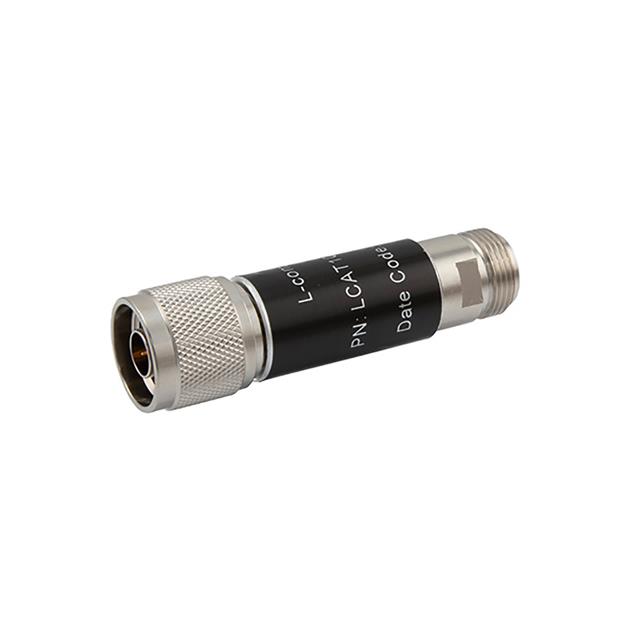

The LCAT1004-10 is an RF fixed attenuator manufactured by L-com, designed for signal reduction in radio frequency circuits. It provides a nominal attenuation of 10 dB with a maximum power handling capacity of 2 Watts continuous wave. The device operates within a frequency range from DC to 6 GHz and maintains a characteristic impedance of 50 Ohms. It features N-type connectors, specifically male to female configuration, ensuring compatibility with standard coaxial systems. The unit exhibits a voltage standing wave ratio (VSWR) of less than 1.3:1, indicating efficient signal transmission with minimal reflection.

Feature Summary

• N-Type connector interface for male-to-female connection
• Operates across a frequency range from DC to 6 GHz
• Supports maximum power handling of 2 Watts continuous wave
• Maintains VSWR below 1.3:1 for low reflection

Applications

• Instrumentation
• RF test systems
• Signal conditioning in communication equipment

Procurement Notes

Verify the specific datasheet version provided by Infinite Electronics International, Inc., as distributor sources may vary. Confirm that the N-type connector gender matches the system requirements. Ensure the operating environment stays within the specified temperature range if not explicitly stated in the primary source document. Cross-reference the part number with official manufacturer catalogs to avoid counterfeit components.

Selection Notes

Select this component when a 10 dB attenuation value is required for frequencies up to 6 GHz. The 2W power rating suits moderate power applications. The N-type interface dictates mechanical compatibility with existing coaxial infrastructure. Consider the brass nickel body material for environmental durability. Verify impedance matching at 50 Ohms for the specific circuit design.

Part Context

This attenuator belongs to the LCAT series of RF fixed attenuators from L-com. These components are engineered for stable performance in radio frequency environments. The series typically offers various attenuation values and connector types. The LCAT1004-10 specifically addresses the need for precise signal reduction in instrumentation and testing scenarios using standard N-type connections.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer guidelines for cross-referencing alternatives.
