LCAT1004-20

Overview

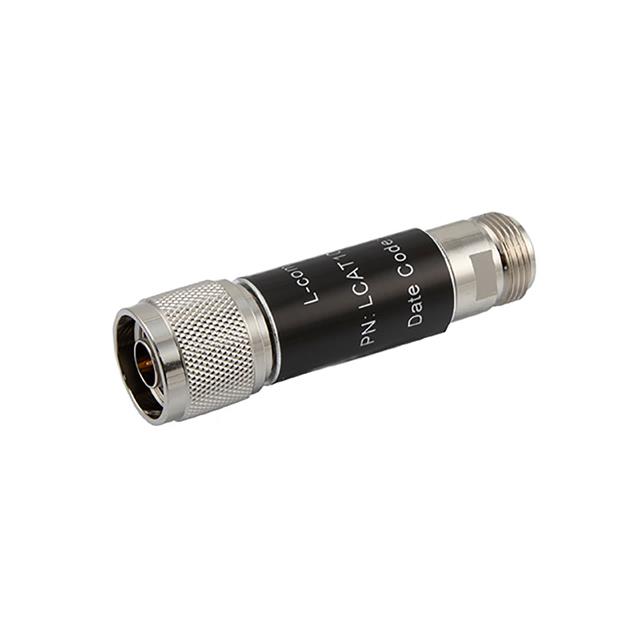

The LCAT1004-20 is a fixed RF attenuator from the LCA series, providing 20dB attenuation. It operates within a frequency range of DC to 6GHz and handles a maximum power of 2W. The device features N-type connectors with male-to-female configuration and utilizes a brass body with nickel plating.

Feature Summary

• N-Type connector interface for reliable coaxial connection
• DC to 6 GHz frequency range operation
• Max power rating of 2 Watts continuous wave

Applications

• Instrumentation systems
• RF test and measurement setups
• Production testing environments

Procurement Notes

Verify the specific part number against official L-com documentation to confirm the 20dB attenuation value and N-type interface specifications. Ensure compatibility with system requirements regarding the 2W power handling and 6GHz frequency limit before procurement.

Selection Notes

Select this component when precise 20dB signal reduction is required in high-frequency applications up to 6GHz. Consider the N-type connector interface and 2W power capacity to ensure alignment with existing RF infrastructure and thermal management needs.

Part Context

This model belongs to the LCA series of high-performance RF fixed attenuators manufactured by L-com. These components are designed for precision measurements and instrumentation, offering consistent electrical performance across their specified operational bandwidths.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult official L-com documentation or authorized distributors for equivalent models if direct replacement is necessary.
