LCAT1007-02

Overview

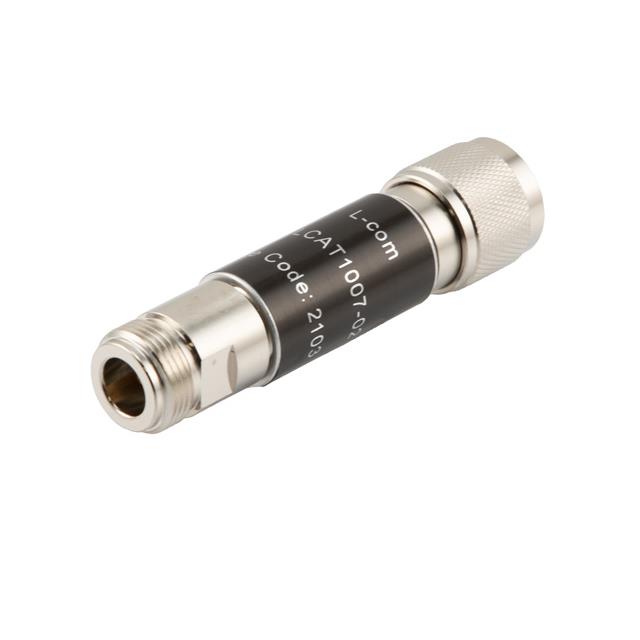

The LCAT1007-02 is a fixed RF attenuator manufactured by L-com, designed for high-frequency applications. It provides a nominal attenuation of 2 dB with a frequency range extending from DC to 18 GHz. The component features N-type male and female connectors and operates at a power rating of 2 W within a 50 Ohm system. Constructed with an aluminum body, it ensures reliable performance across a wide temperature spectrum.

Feature Summary

• Provides precise 2 dB signal reduction in RF circuits
• Operates effectively from DC up to 18 GHz
• Features robust N-type male-to-female interconnects

Applications

• RF test and measurement instrumentation
• Signal conditioning in communication systems
• Attenuation in microwave circuit design

Procurement Notes

Verify the specific connector gender configuration matches the system requirements before ordering. Confirm that the 2 W power handling capacity aligns with the maximum expected signal levels in the application. Ensure the operating temperature range meets environmental specifications. Cross-reference the datasheet for detailed mechanical dimensions to verify fitment within the assembly.

Selection Notes

Select this model when a low attenuation value is required for frequencies up to 18 GHz. The N-type interface offers durability and ease of use compared to smaller connectors. Consider the 2 W power rating for moderate power applications. Aluminum construction provides thermal stability. Evaluate alternative models if higher attenuation or different connector types are needed.

Part Context

This component belongs to the LCAT series of connectorized attenuators from L-com. The series includes various attenuation values and connector combinations. The LCAT1007-02 specifically addresses the need for minimal signal loss in high-frequency environments. It complements other passive components in RF signal chains.

Replacement Considerations

LCAT1007-03

FAQ

What is the frequency range of the LCAT1007-02?

The LCAT1007-02 operates from DC to 18 GHz.

What is the power rating of this attenuator?

The device has a power rating of 2 W.
