LCAT1007-05

Overview

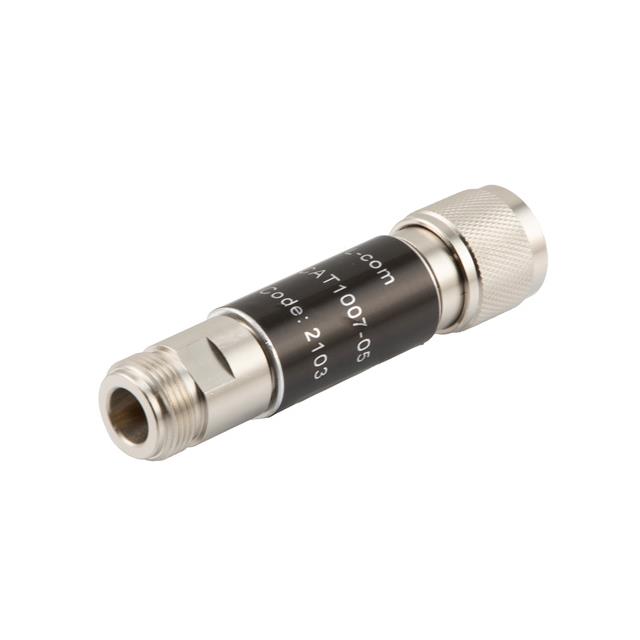

The LCAT1007-05 is an RF fixed attenuator manufactured by L-com. It provides a nominal attenuation of 5dB across a frequency range from DC to 18 GHz. The component features a 50 Ohm impedance and supports an input power of 2W. It utilizes N-type connectors, specifically configured as male-to-female for in-line module applications. The unit is constructed with an aluminum body and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Provides precise 5dB signal reduction for radio frequency circuits
• Operates effectively up to 18 GHz frequency range
• Constructed with durable aluminum housing for thermal stability

Applications

• RF test and measurement setups
• Signal conditioning in wireless communication systems
• Attenuation requirements in microwave instrumentation

Procurement Notes

Verify the specific connector gender configuration (N Male to N Female) against system interface requirements before ordering. Confirm that the 2W power handling capacity aligns with the maximum expected signal levels in the application circuit. Ensure the operating temperature range meets environmental specifications. Cross-reference the part number with official L-com documentation to confirm current manufacturing status and lead times.

Selection Notes

Select this component when a fixed 5dB attenuation is required at frequencies extending to 18 GHz. The 50 Ohm impedance matches standard RF transmission lines. Consider the 2W power rating for high-power signal paths. The N-type interface suits larger coaxial systems where higher power handling is preferred over smaller connectors.

Part Context

This model belongs to L-com's line of RF attenuators designed for broad bandwidth applications. It serves as a passive component to reduce signal amplitude without distortion. The design focuses on maintaining impedance consistency across the wide frequency spectrum.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
