LCAT1007-06

Overview

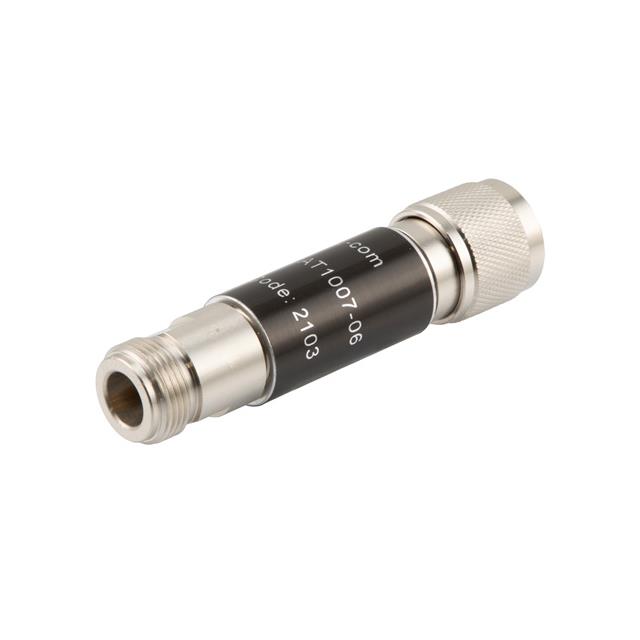

The LCAT1007-06 is a fixed RF attenuator manufactured by L-com, designed for signal strength reduction in coaxial systems. It provides a nominal attenuation of 6 dB with a power handling capacity of 2 watts. The device operates within a frequency range from DC to 18 GHz and maintains a characteristic impedance of 50 Ohms. It features an inline module configuration connecting N-type male connectors on one end to N-type female connectors on the other. The unit utilizes a brass body construction.

Feature Summary

• Provides precise 6 dB signal attenuation for RF applications
• Supports continuous power handling up to 2 watts
• Operates effectively across a broad frequency spectrum from DC to 18 GHz
• Features robust brass housing for durability

Applications

• RF signal level adjustment in test and measurement setups
• Impedance matching between N-type connectorized components
• Signal conditioning in wireless communication infrastructure
• Attenuation in high-frequency electronic circuits

Procurement Notes

Verify the specific part number LCAT1007-06 against official L-com documentation to confirm the 6 dB attenuation value and 2W power rating. Ensure compatibility with N-type male-to-female interfaces. Check for RoHS compliance status if required by project specifications. Confirm the operating temperature range matches environmental requirements before finalizing procurement orders.

Selection Notes

Select this component when a fixed 6 dB reduction is required in a 50 Ohm system. It is suitable for applications demanding operation up to 18 GHz. Choose this model over variable attenuators when a constant attenuation value is sufficient. Ensure the connector polarity (male-to-female) aligns with the interconnection needs of the surrounding hardware.

Part Context

This component belongs to the LCAT series of passive interconnect attenuators produced by L-com. These devices are engineered for reliable performance in radio frequency environments. The series offers various attenuation values while maintaining consistent electrical characteristics across the product line. This specific model represents a standard inline solution for signal management.

Replacement Considerations

Cross-reference with other L-com models in the LCAT series for different attenuation values. Verify that substitute parts maintain the same N-type male-to-female interface and 50 Ohm impedance. Ensure any replacement supports the required 2W power handling and 18 GHz frequency limit.
