LCAT1007-08

Overview

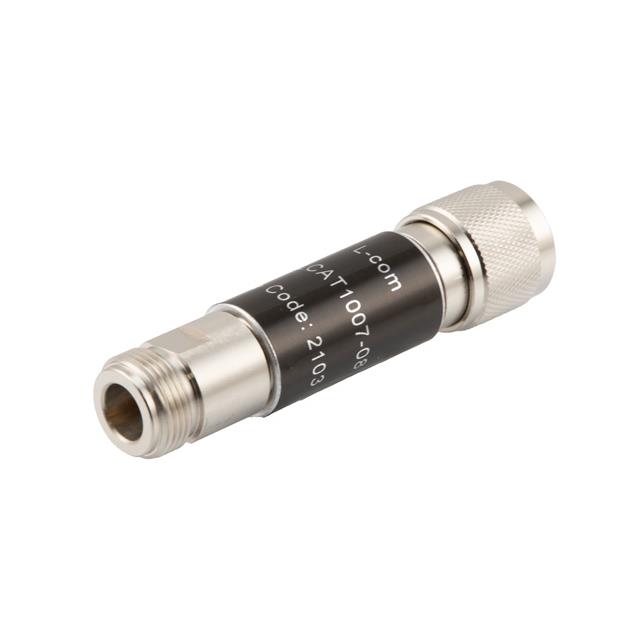

LCAT1007-08 is an RF fixed attenuator manufactured by L-com, designed for high-frequency signal management. It provides a nominal attenuation of 8 dB with a power handling capacity of 2 Watts. The device operates within a frequency range from DC to 18 GHz. It features N-type connectors, specifically an N male connector on one end and an N female connector on the other. The construction utilizes a brass body, ensuring durability in demanding environments.

Feature Summary

• Provides precise 8 dB signal attenuation for RF applications
• Operates effectively across a wide bandwidth from DC to 18 GHz
• Features robust N-type male-to-female connectivity
• Constructed with a durable brass housing for thermal stability

Applications

• RF signal level adjustment in communication systems
• Test and measurement equipment calibration
• High-frequency circuit protection and impedance matching

Procurement Notes

Verify the specific part number LCAT1007-08 against official L-com documentation to confirm the 8 dB attenuation value and 2W power rating. Ensure compatibility with N-type male and female interfaces. Check manufacturer specifications for operating temperature ranges and frequency limits before integration into critical RF systems.

Selection Notes

Select this component when an 8 dB reduction is required in systems operating up to 18 GHz. Consider the 2W power handling limit for high-power applications. The N-type interface dictates connector compatibility with existing cabling infrastructure. Verify that the brass construction meets environmental requirements for the intended deployment scenario.

Part Context

This component belongs to the LCAT series of RF fixed attenuators from L-com. These devices are engineered for consistent performance in radio frequency environments. The series offers various attenuation values and connector configurations to suit different system needs while maintaining standard impedance characteristics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material. Consult L-com technical support or authorized distributors for equivalent components with matching electrical specifications and connector types.
