LCAT1007-30

Overview

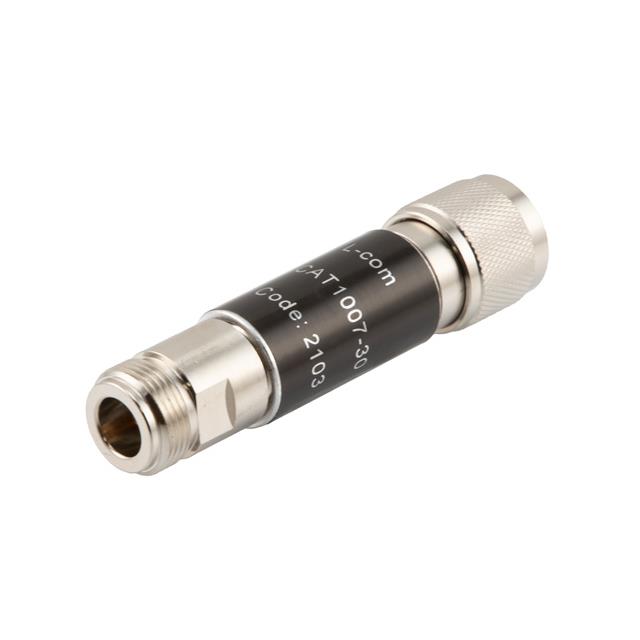

The LCAT1007-30 is a fixed RF attenuator manufactured by L-com, designed for high-frequency signal management. It provides a precise attenuation value of 30dB within an operating frequency range extending from DC to 18GHz. The component features a 50 Ohm impedance and supports an input power rating of 2W. It utilizes N-type connectors, specifically configured with a male plug on one end and a female jack on the other, ensuring compatibility with standard coaxial systems.

Feature Summary

• Provides stable 30dB signal reduction across a wide DC to 18GHz bandwidth
• Constructed with durable brass nickel body for reliable performance
• Features inline N-type male-to-female connector configuration

Applications

• RF test and measurement equipment calibration
• Signal level adjustment in wireless communication systems
• Protection of sensitive receiver inputs from high-power signals

Procurement Notes

Verify the specific datasheet version for the LCAT1007-30 to confirm mechanical dimensions and material specifications. Ensure that the N-type connector gender configuration matches the system requirements. Cross-reference the 2W power rating against actual operational conditions to prevent thermal issues during extended use.

Selection Notes

Select this model when a 30dB attenuation value is required at frequencies up to 18GHz. The 50 Ohm impedance aligns with standard RF infrastructure. Consider the physical size and weight constraints if space is limited, as the brass nickel construction adds mass compared to polymer alternatives.

Part Context

This component belongs to L-com's passive series of connectorized attenuators. It is part of the LCAT family, which offers various attenuation values and connector types. The LCAT1007-30 specifically addresses the need for high-isolation applications requiring robust N-type interfaces.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
