LCAT7094-01

Overview

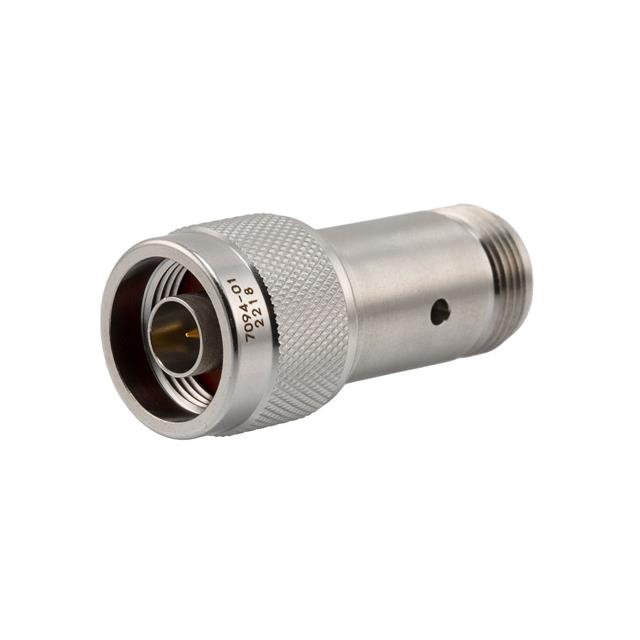

The LCAT7094-01 is a fixed RF attenuator manufactured by L-com, designed for in-line module applications. It provides a nominal attenuation of 1 dB with a tolerance of ±0.5 dB. The device operates within a frequency range from DC to 18 GHz and maintains a characteristic impedance of 50 Ohms. It supports a maximum continuous wave power handling of 2 Watts. The unit features N-Type connectors, specifically configured as Male to Female, and utilizes a passivated stainless steel housing for durability.

Feature Summary

• Fixed 1 dB attenuation value suitable for precise signal level adjustment
• Wideband operation extending from DC up to 18 GHz
• Robust construction using passivated stainless steel materials
• Standard N-Type male-to-female coaxial interface configuration

Applications

• RF signal path attenuation in test and measurement equipment
• Signal conditioning in wireless communication systems
• Component integration in microwave circuit designs

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure correct attenuation value and connector gender. Confirm that the required frequency range and power handling capabilities align with system specifications before procurement. Cross-reference datasheets to validate material composition and connector type compatibility.

Selection Notes

Select this component when a low-value fixed attenuation is required for high-frequency applications up to 18 GHz. Ensure the system impedance matches the 50 Ohm specification. Consider the 2W power rating for thermal management requirements. Verify that N-Type connectors are compatible with existing cable assemblies and equipment interfaces.

Part Context

This model belongs to the LCAT7094 series of fixed attenuators from L-com. The series offers various attenuation values ranging from 1 dB to higher levels, all sharing similar form factors and electrical characteristics. These components are standardized for use in general RF infrastructure where consistent signal reduction is necessary across broad bandwidths.
