LCAT7094-03

Overview

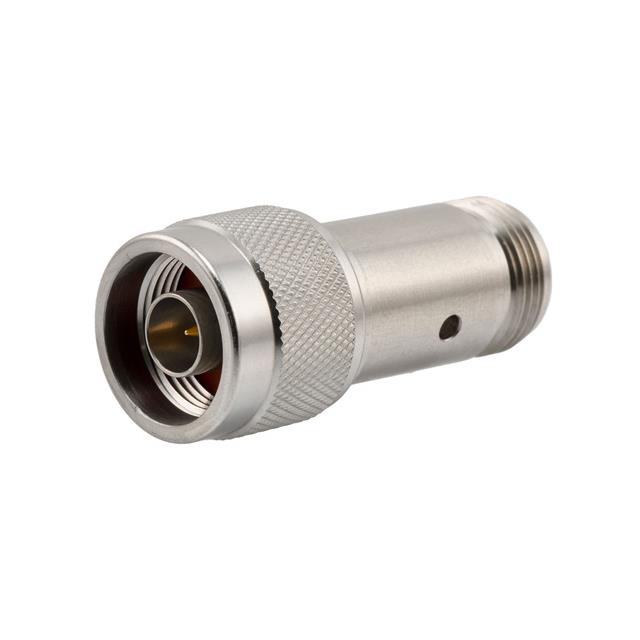

The LCAT7094-03 is a fixed RF attenuator from the L-com LCAT series, designed for interconnect applications. It provides an attenuation value of 3 dB with a frequency range extending from DC to 18 GHz. The component features N-type male and female connectors and operates at a maximum power of 2 Watts. It maintains a characteristic impedance of 50 Ohms and exhibits a VSWR of less than 1.35:1. Constructed with stainless steel, this inline module ensures reliable performance in high-frequency signal processing environments.

Feature Summary

• Provides precise 3 dB attenuation across a wide DC to 18 GHz bandwidth
• Features robust N-type male-to-female connector interface for secure integration
• Utilizes stainless steel construction for durability and environmental resistance

Applications

• RF signal level adjustment in communication systems
• Test and measurement equipment calibration
• High-frequency circuit protection and signal conditioning

Procurement Notes

Verify the specific part number LCAT7094-03 against official L-com documentation to confirm technical specifications. Ensure compatibility with system requirements regarding frequency range, power handling, and connector type. Cross-reference datasheets for accurate electrical parameters before procurement to avoid integration errors.

Selection Notes

Select this component when a 3 dB attenuation value is required within a DC to 18 GHz operational range. Consider the N-type connector interface for mating compatibility. Evaluate the 2W power rating and 50 Ohm impedance against system load conditions. Stainless steel construction offers suitability for demanding industrial or outdoor environments requiring mechanical stability.

Part Context

This model belongs to the L-com LCAT series of passive RF components. It is categorized as a connectorized attenuator designed for interconnect applications. The product line focuses on providing reliable signal control solutions for radio frequency and wireless systems, ensuring consistent performance across specified frequency bands.

Replacement Considerations

Publicly confirmed parameter-equivalent substitutes include ATT-0313-07-BNC-10, PE7437-7, R414407000, FMAT7469-3, FMAT7609-3, PE7469-3, PE7609-3, R414503000, and R414503150. Verify connector types and electrical specifications before substitution.
