LCAT7094-06

Overview

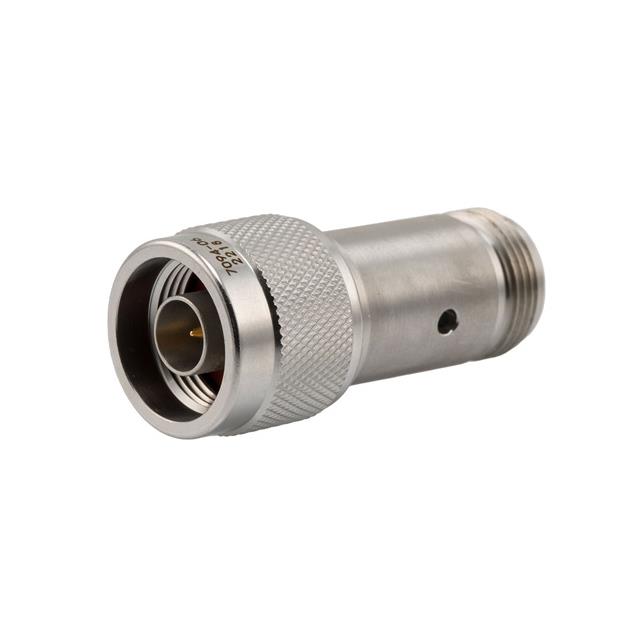

The LCAT7094-06 is a fixed RF attenuator manufactured by L-com, designed for high-frequency signal management. It provides a nominal attenuation of 6 dB with a tolerance of ±0.5 dB across a frequency range from DC to 18 GHz. The device features N-type male and female connectors, ensuring compatibility with standard coaxial systems. Rated for a maximum power handling of 2 Watts continuous wave, it maintains a VSWR of less than 1.35:1. Constructed from passivated stainless steel, the unit operates within a temperature range of -55°C to +125°C and has an impedance of 50 Ohms.

Feature Summary

• Provides precise 6 dB signal attenuation for RF applications
• Operates effectively from DC up to 18 GHz frequency range
• Features robust N-type male to female connector interface
• Constructed from durable passivated stainless steel housing

Applications

• RF test and measurement equipment signal conditioning
• Wireless communication system power level adjustment
• Microwave circuit design and development
• Signal integrity maintenance in high-frequency networks

Procurement Notes

Verify the specific part number LCAT7094-06 against official L-com documentation to confirm the 6 dB attenuation value and N-type connector configuration. Ensure that the required 2W power rating and 18 GHz frequency range align with your system specifications. Cross-reference datasheets for environmental operating limits and physical dimensions to guarantee mechanical fit and thermal performance in your intended application environment.

Selection Notes

Select this component when a fixed 6 dB reduction is required in a 50 Ohm system operating up to 18 GHz. Consider the N-type interface for robustness and the stainless steel construction for durability in harsh environments. Compare against other L-com models like LCAT1007-09 or LCAT7094-10 if different attenuation values or SMA connectors are needed. Ensure the 2W power handling meets peak signal requirements without exceeding thermal limits.

Part Context

This model belongs to L-com's passive series of connectorized attenuators, specifically designed for interconnect applications. It is part of a family offering various attenuation levels and connector types, such as the LCAT1006-01 with SMA connectors. These components are engineered for reliable performance in RF and microwave circuits, providing stable attenuation characteristics across wide bandwidths while maintaining low reflection coefficients.

Replacement Considerations

Direct substitutes include other L-com fixed attenuators with identical 6 dB attenuation and N-type interfaces, such as variants within the same LCAT series. Verify that any replacement matches the 2W power rating and 18 GHz frequency limit. Check connector gender and mating compatibility to ensure seamless integration into existing setups without requiring adapter modifications.
