LCAT7094-08

Overview

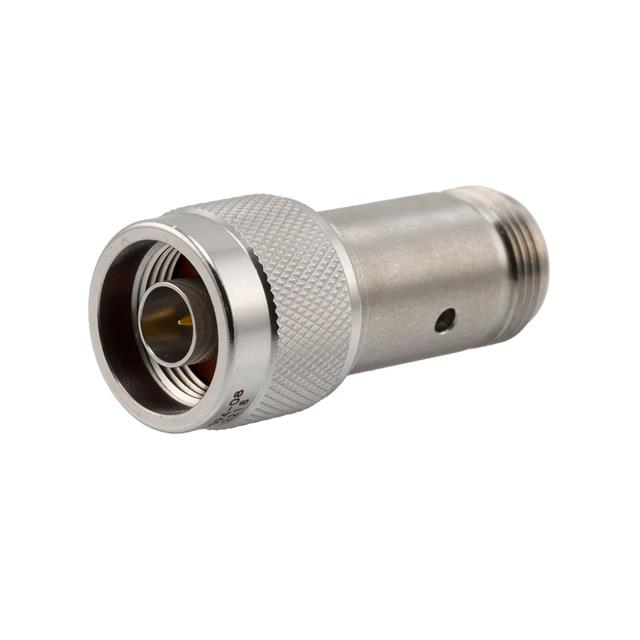

The L-com LCAT7094-08 is a fixed RF attenuator designed for high-frequency applications. It provides an attenuation value of 8 dB with a tolerance of ±0.5 dB. The device operates within a frequency range from DC to 18 GHz and maintains a characteristic impedance of 50 Ohms. It supports a maximum power rating of 2 Watts continuous wave (CW). The unit features N-type male to female connectors and utilizes passivated stainless steel construction. Voltage Standing Wave Ratio (VSWR) is specified as less than 1.35:1.

Feature Summary

• Constructs signal attenuation using passivated stainless steel housing for durability
• Connects via N-type male and female interfaces for inline integration
• Maintains stable performance across a wide bandwidth up to 18 GHz

Applications

• RF test and measurement instrumentation
• Signal conditioning in communication systems
• Laboratory equipment requiring precise power reduction

Procurement Notes

Verify the specific connector gender configuration and physical dimensions against system requirements before ordering. Confirm that the 2W power rating aligns with the operational load conditions. Ensure compatibility with standard N-type mating hardware. Check current availability status as supply levels may fluctuate due to manufacturing lead times.

Selection Notes

Choose this component when a fixed 8 dB reduction is required at frequencies extending to 18 GHz. The 50 Ohm impedance matches standard RF transmission lines. The stainless steel body offers environmental resistance suitable for industrial settings. Consider the N-type interface if existing infrastructure utilizes this connector standard.

Part Context

This model belongs to the LCAT series of passive RF components manufactured by L-com. These attenuators are engineered for reliable signal management in wireless and wired networks. The series typically includes various attenuation values and connector types to support diverse electronic design needs.

Replacement Considerations

Equivalent parts include models from other manufacturers offering 8 dB attenuation, 50 Ohm impedance, and N-type connectors within the same frequency range. Verify mechanical fit and electrical specifications match exactly before substitution.
