LCAT7094-09

Overview

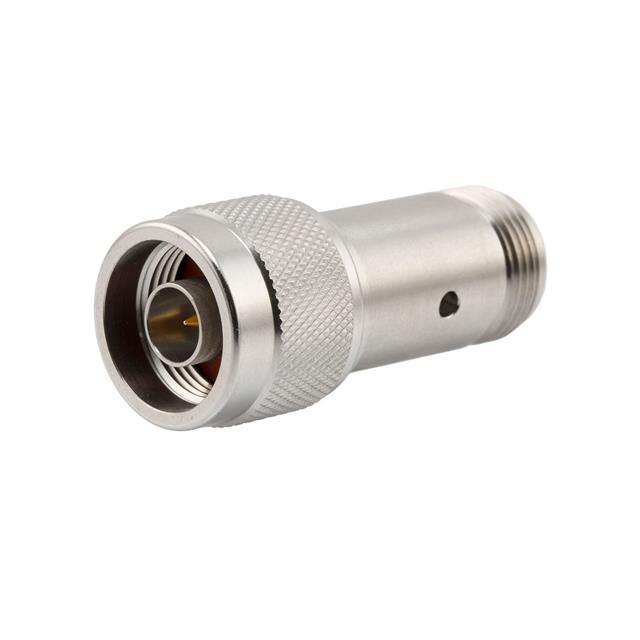

The LCAT7094-09 is an RF fixed attenuator manufactured by L-com, designed for high-frequency signal management. It provides a precise attenuation value of 9 dB across a frequency range extending from DC to 18 GHz. The component features N male to N female connectors, ensuring compatibility with standard coaxial systems. Constructed with stainless steel housing, it supports a maximum input power of 2 W and maintains a characteristic impedance of 50 ohms, suitable for demanding wireless applications.

Feature Summary

• Provides stable 9 dB signal reduction across a wide bandwidth up to 18 GHz
• Features robust stainless steel construction for durability in harsh environments
• Utilizes N male to N female interface for seamless integration into existing RF infrastructure

Applications

• RF test and measurement setups requiring precise signal level adjustment
• Wireless communication systems operating within the specified frequency range
• Signal conditioning in high-frequency electronic circuits

Procurement Notes

Verify part authenticity through official L-com channels or authorized distributors. Confirm connector gender and attenuation value match project requirements. Request original manufacturer datasheets for technical validation. Ensure storage conditions preserve component integrity prior to installation.

Selection Notes

Choose this model when a 9 dB fixed attenuation is required at frequencies up to 18 GHz. The 50-ohm impedance matches standard RF systems. Stainless steel body offers environmental resistance. Verify power handling capabilities against peak signal levels in the specific application circuit.

Part Context

This component belongs to L-com's LCAT7094 series of fixed attenuators. Variants in this series offer different attenuation values, such as 2 dB or other discrete steps, while maintaining similar form factors and electrical characteristics. The series supports various connector configurations for diverse system integration needs.

Replacement Considerations

Direct substitutes include other LCAT7094 variants with identical connector types but different attenuation values, provided the specific dB loss requirement can be adjusted. Cross-brand replacements must match the 50-ohm impedance, N-male/N-female interface, and 18 GHz frequency limit.
