LCAT7396-16

Overview

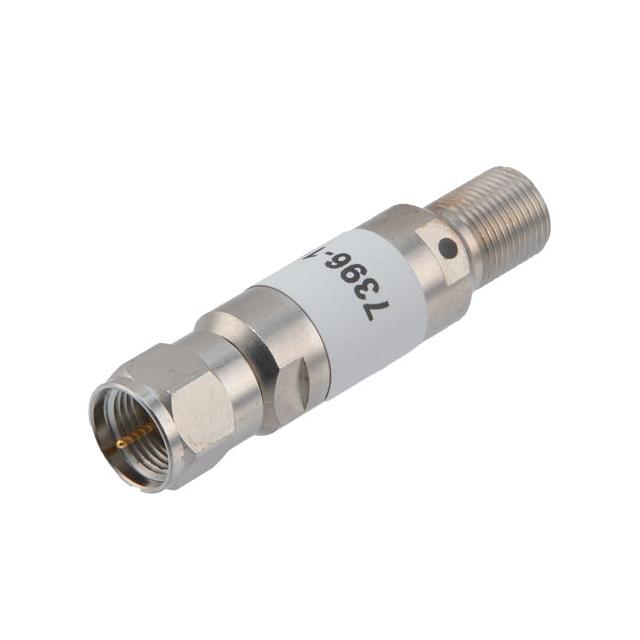

The LCAT7396-16 is a fixed RF attenuator manufactured by L-com, designed for in-series signal reduction applications. It provides a nominal attenuation value of 16 dB across a frequency range extending from 0 Hz to 3 GHz. The component operates with a characteristic impedance of 75 Ohms and supports a maximum power handling capacity of 2 Watts. It features F-type connectors, specifically an F male to F female configuration, facilitating direct inline integration into coaxial systems. The housing utilizes brass tri-metal construction to ensure mechanical durability and consistent electrical performance within standard RF environments.

Feature Summary

• Provides fixed 16 dB signal attenuation for RF circuitry
• Supports operation up to 3 GHz frequency range
• Features F male to F female in-line connector interface
• Constructed with brass tri-metal housing for durability

Applications

• RF and wireless signal conditioning
• In-series attenuation in 75 Ohm coaxial systems
• Signal level adjustment in broadcast infrastructure

Procurement Notes

Verify the specific datasheet version provided by the manufacturer or authorized distributor to confirm current technical specifications. Ensure compatibility with existing 75 Ohm system impedance requirements before procurement. Cross-reference the part number LCAT7396-16 against official L-com documentation to validate connector type and power rating details. Confirm that the intended application falls within the specified 0 Hz to 3 GHz operational range.

Selection Notes

Select this component when a precise 16 dB reduction is required in a 75 Ohm environment. Consider the 2 Watt power rating to ensure it exceeds the maximum expected signal power in the line. Verify that the F-type connector interface matches the existing cable assembly standards. Evaluate the 3 GHz bandwidth limit to ensure it covers the highest frequency component of the signal spectrum without significant deviation.

Part Context

This model belongs to the L-com Attenuators series, specifically designed as fixed-value components for RF applications. It serves as a passive device to manage signal strength in coaxial networks. The product line emphasizes reliable performance in broadcast and wireless sectors where stable attenuation characteristics are critical for system integrity and signal quality maintenance.

Replacement Considerations

Direct substitutes include other 16 dB fixed attenuators with 75 Ohm impedance and F-type connectors. Verify that alternative parts match the 2 Watt power rating and 3 GHz frequency limit. Check for identical mechanical dimensions to ensure fit within existing enclosures or cable runs.
