LCAT7396-7

Overview

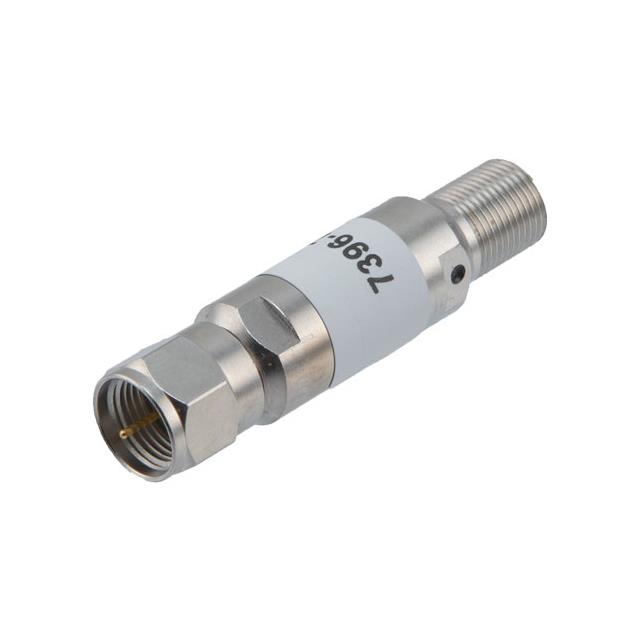

The LCAT7396-7 is a 7 dB fixed attenuator with a 75 Ohm impedance, featuring an F male to F female connector configuration. Constructed from brass with a tri-metal body, it supports a frequency range of DC to 3 GHz. The device has a maximum power rating of 2 Watts (CW) and maintains a VSWR of less than 1.3:1. Attenuation tolerance is specified at 7±0.5 dB.

Feature Summary

• Provides precise signal attenuation for RF applications within the 75 Ohm system environment.
• Ensures signal integrity through low voltage standing wave ratio performance across the operational bandwidth.

Applications

• RF signal level adjustment in broadcast systems
• Impedance matching in video distribution networks
• Test and measurement equipment signal conditioning

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number LCAT7396-7 with official L-com documentation. Confirm that the received unit matches the specified F male-to-F female interface and 75 Ohm impedance characteristics. Ensure the physical construction aligns with the described brass tri-metal body specifications before integration into critical RF circuits.

Selection Notes

Select this component when a fixed 7 dB reduction is required in 75 Ohm environments operating up to 3 GHz. It is suitable for applications demanding stable attenuation with minimal reflection, indicated by the low VSWR specification. Consider the 2 Watt power handling capability to ensure safe operation under continuous wave conditions without thermal degradation.

Part Context

This attenuator belongs to the L-com line of RF interconnect components designed for maintaining signal quality in high-frequency circuits. It serves as a passive element to control signal amplitude, preventing overload in sensitive downstream receivers or ensuring proper drive levels in transmission lines within professional audio-visual and telecommunications infrastructures.

Replacement Considerations

Consult official L-com substitution guides for compatible equivalents. Verify that any alternative maintains identical 75 Ohm impedance, F-type connectors, and 7 dB attenuation value to preserve circuit performance integrity.
