LCAT7437-2

Overview

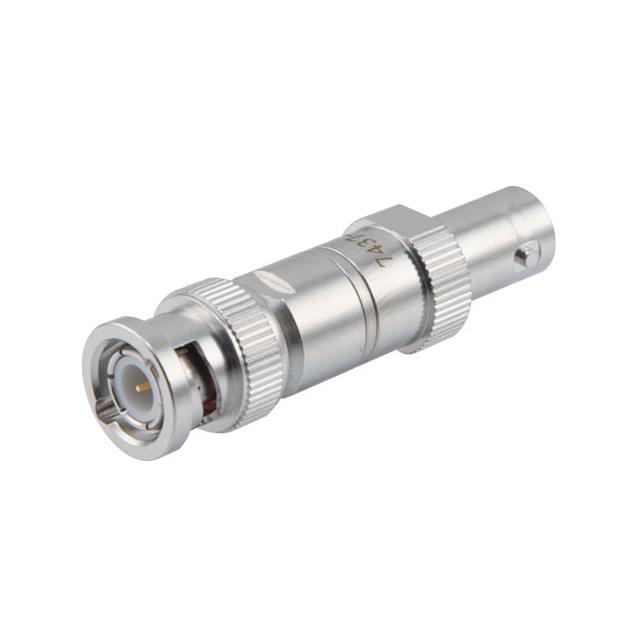

The LCAT7437-2 is a fixed RF attenuator from the L-COM LCAT7437 series, designed for signal reduction in radio frequency circuits. It provides a precise attenuation value of 2 dB across a frequency range of DC to 4 GHz. The component features a BNC plug-to-BNC jack interface configuration, facilitating direct inline connection between compatible coaxial systems. Constructed with a brass body, it supports an input power rating of 2 W and operates within a temperature range of -55°C to +125°C. The device maintains a standard impedance of 50 ohms, ensuring minimal signal reflection and stable performance in high-frequency applications.

Feature Summary

• Provides fixed 2 dB attenuation for signal level control
• Operates effectively from DC up to 4 GHz frequency range
• Features durable brass construction for thermal stability
• Utilizes BNC plug-to-jack interface for straightforward integration

Applications

• RF signal path attenuation in test and measurement equipment
• Impedance matching and signal conditioning in communication systems
• Protecting sensitive receiver inputs from high power levels
• Calibration setups requiring precise signal reduction

Procurement Notes

Verify that the specific part number LCAT7437-2 matches the required 2 dB attenuation value and BNC interface type before ordering. Confirm that the operating environment falls within the specified -55°C to +125°C temperature range. Ensure system impedance requirements align with the 50 ohm specification to maintain signal integrity. Check for any mechanical clearance constraints related to the BNC connector dimensions.

Selection Notes

Select this component when a fixed 2 dB reduction is necessary within the 4 GHz bandwidth. Consider the brass material and 2 W power handling if thermal management is critical. The BNC interface dictates compatibility with existing BNC-equipped cabling and fixtures. Evaluate whether the fixed attenuation value meets the design requirements without needing adjustable alternatives.

Part Context

This model belongs to the LCAT7437 series of fixed RF attenuators manufactured by L-COM. The series offers various attenuation values while maintaining consistent interface types and electrical characteristics. The LCAT7437-2 specifically denotes the 2 dB variant within this product line, sharing common form factors and operational parameters with other members of the family.

Replacement Considerations

Direct substitutes include other LCAT7437 series variants with different attenuation values if the dB requirement changes. Cross-brand replacements must match the 50 ohm impedance, BNC interface, and 4 GHz frequency limit. Verify that alternative components support the same 2 W power rating and temperature range to ensure equivalent performance.
