LCAT7437-20

Overview

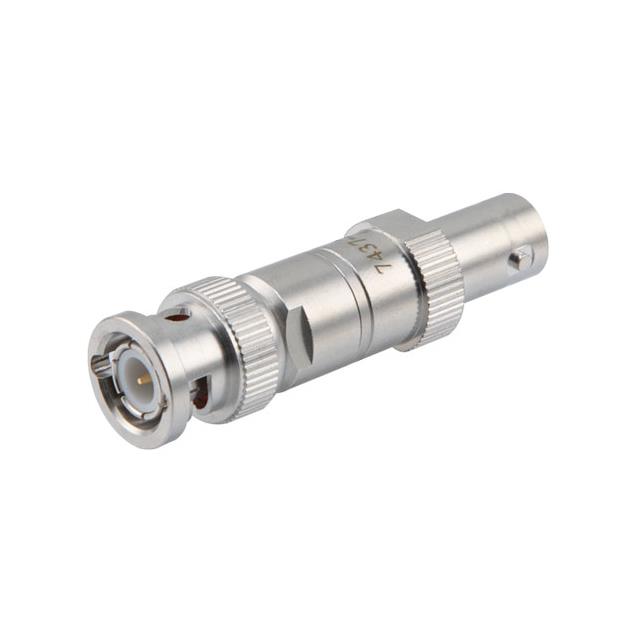

The LCAT7437-20 is a fixed RF attenuator manufactured by L-com, designed for signal reduction in radio frequency circuits. It provides a precise attenuation value of 20 dB across a frequency range extending from DC to 4 GHz. The component features a 50 Ohm impedance system, ensuring compatibility with standard RF infrastructure. It supports an input power rating of 2 Watts and utilizes BNC connectors, specifically configured as a plug-to-jack inline module. The construction typically involves brass bodies with gold plating for reliable performance.

Feature Summary

• Provides fixed 20 dB signal attenuation for RF applications
• Operates effectively within a DC to 4 GHz frequency spectrum
• Features BNC male-to-female inline connectivity
• Supports 2W input power handling capacity

Applications

• RF signal level adjustment in test and measurement equipment
• Attenuation in wireless communication systems up to 4 GHz
• Impedance matching in 50 Ohm RF circuitry
• Signal conditioning in broadcast and antenna distribution networks

Procurement Notes

Verify the specific datasheet version provided by L-com or authorized distributors to confirm current technical specifications and compliance standards. Ensure that the procurement channel supplies genuine components to guarantee the 20 dB tolerance and 2W power rating are met. Cross-reference the part number LCAT7437-20 with official manufacturer documentation to avoid substitution errors with similar models in the LCAT series.

Selection Notes

Select this component when a fixed 20 dB reduction is required for signals between DC and 4 GHz. It is suitable for systems operating at 50 Ohms impedance. Consider the 2W power limit when designing circuits with high-power RF sources. The BNC interface dictates connector compatibility with existing cabling and equipment ports.

Part Context

This part belongs to the LCAT series of fixed attenuators from L-com, which offers various attenuation values such as 2 dB, 5 dB, and others. The series maintains consistent BNC connectivity and 50 Ohm impedance characteristics across different attenuation levels, allowing for modular integration into RF setups requiring specific signal loss profiles.

Replacement Considerations

Direct substitutes include other LCAT series models with identical BNC interfaces but different attenuation values if the dB requirement changes. Generic replacements must match the 50 Ohm impedance, 4 GHz frequency limit, and 2W power rating while maintaining BNC plug-to-jack configuration.
