LCAT7437-7

Overview

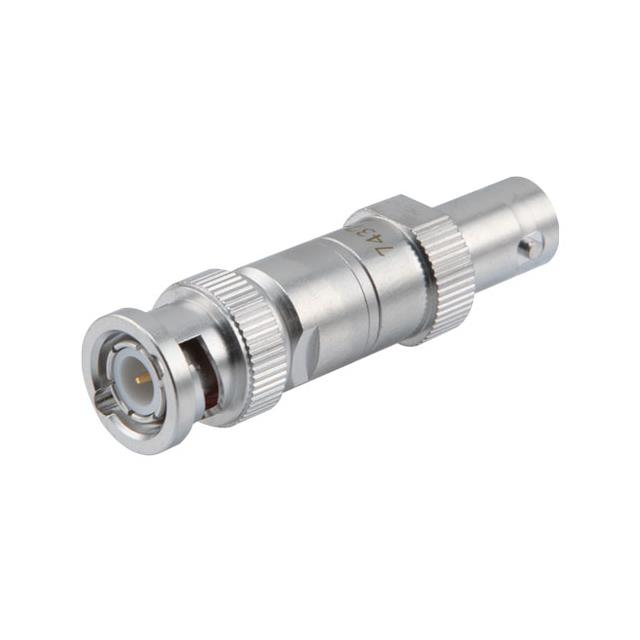

The LCAT7437-7 is a fixed RF attenuator from the L-COM LCAT7437 series, designed for precise signal reduction in radio frequency applications. It provides a nominal attenuation of 7 dB with a characteristic impedance of 50 ohms. The device features BNC connectors, utilizing a male plug on one end and a female jack on the other, facilitating direct inline integration into coaxial systems. Rated for a maximum power handling capacity of 2 watts, it ensures reliable performance under standard operating conditions. Constructed with brass body materials, this component supports an operating temperature range from -55°C to +125°C, making it suitable for diverse environmental requirements.

Feature Summary

• Provides fixed 7 dB attenuation for signal level control
• Features BNC male-to-female connector interface for easy installation
• Supports 50 ohm system impedance for standard RF compatibility
• Rated for 2 watts maximum power handling capacity

Applications

• RF signal path attenuation in test and measurement equipment
• Signal conditioning in wireless communication systems
• Protection of sensitive receiver inputs from high power levels
• Integration into coaxial cable assemblies for signal management

Procurement Notes

Verify that the specific part number LCAT7437-7 matches the required 7 dB attenuation value and 50 ohm impedance specifications before procurement. Confirm that the BNC male-to-female configuration aligns with existing connector types in the assembly. Ensure the 2-watt power rating meets the operational power requirements of the target application. Check manufacturer documentation for any updates regarding material composition or temperature ratings to guarantee compatibility with environmental conditions.

Selection Notes

Select the LCAT7437-7 when a fixed 7 dB attenuation is required within a 50 ohm RF environment. This component is appropriate for applications needing robust brass construction and wide temperature tolerance. Consider the BNC interface type to ensure mechanical compatibility with mating connectors. Evaluate the 2-watt power limit against peak signal levels to prevent damage. Compare against other series members if different attenuation values or connector styles are needed.

Part Context

The LCAT7437-7 belongs to the LCAT7437 series of fixed attenuators manufactured by L-com. This series offers various attenuation values ranging from lower decibel levels up to higher reductions, all maintaining 50 ohm impedance and BNC connectivity. The product line is designed for general-purpose RF applications requiring reliable signal attenuation. Other variants in the series include models with different dB ratings such as 4 dB, 10 dB, and 20 dB, sharing similar physical and electrical characteristics.

Replacement Considerations

Direct substitutes within the same series include LCAT7437-4 (4 dB), LCAT7437-10 (10 dB), and LCAT7437-20 (20 dB), provided the attenuation difference is acceptable for the circuit design. Cross-brand replacements must match the 50 ohm impedance, 7 dB attenuation, BNC male-to-female interface, and 2-watt power rating. Verify that alternative components support the -55°C to +125°C operating temperature range.
