LCAT7437-8

Overview

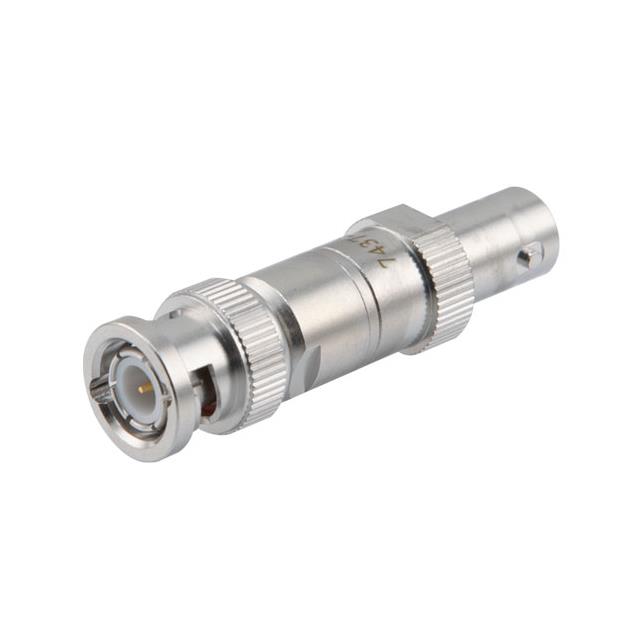

The LCAT7437-8 is a fixed RF attenuator from the L-com LCAT7437 series, designed for in-line signal reduction. It provides an attenuation value of 8dB with a nominal impedance of 50 Ohms. The device operates within a frequency range of DC to 4 GHz and supports a maximum power handling capacity of 2W. It features BNC connectors, specifically a male plug to female jack interface configuration. The construction utilizes a brass tri-metal body with gold plating, ensuring durability and reliable performance in high-frequency applications up to 4 GHz.

Feature Summary

• Provides precise 8dB signal attenuation for RF circuitry
• Operates effectively across a wide frequency spectrum from DC to 4 GHz
• Features robust brass tri-metal body construction with gold plating
• Supports continuous power handling up to 2W

Applications

• RF signal level adjustment in test and measurement equipment
• Impedance matching and signal conditioning in communication systems
• Protection of sensitive receiver inputs from high-power signals

Procurement Notes

Verify the specific part number LCAT7437-8 against manufacturer documentation to confirm technical specifications. Ensure compatibility with system requirements regarding impedance, power rating, and connector type. Check for updated datasheets or revision notes that may affect performance characteristics. Confirm environmental compliance and material composition details as required by project specifications before finalizing procurement decisions.

Selection Notes

Select this component when a fixed 8dB attenuation is required at 50 Ohms impedance. Consider the 2W power rating and 4 GHz frequency limit to ensure suitability for the intended application. The BNC plug-to-jack interface dictates mechanical integration constraints. Evaluate thermal management needs based on the specified power handling capabilities and operating environment conditions.

Part Context

This model belongs to the LCAT7437 series of fixed attenuators manufactured by L-com. The series offers various attenuation values while maintaining consistent interface and performance standards. These components are engineered for reliability in RF environments, providing stable attenuation characteristics over the specified frequency range. The series design emphasizes compact form factors suitable for inline integration.

Replacement Considerations

Compatible substitutes include other 8dB fixed attenuators with BNC interfaces and similar power ratings. Verify impedance matching (50 Ohms) and frequency range (DC to 4 GHz) when considering alternatives. Ensure physical connector compatibility and mounting requirements align with existing infrastructure. Consult manufacturer cross-reference lists for direct replacements.
