LCAT7437-9

Overview

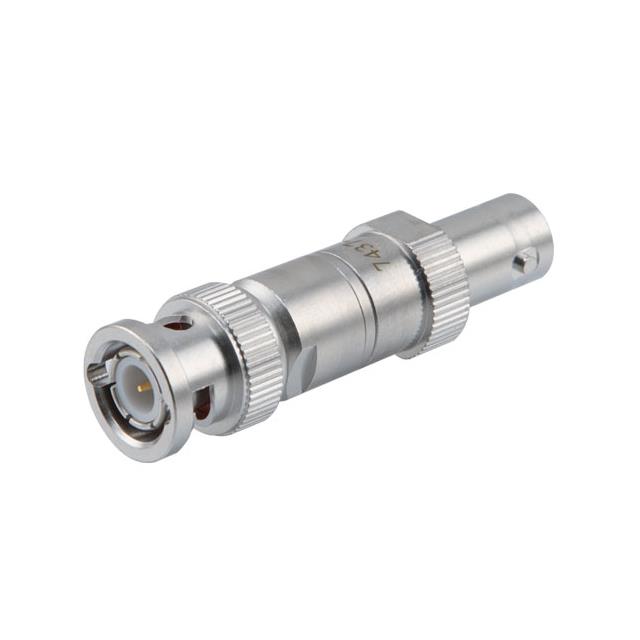

The LCAT7437-9 is a fixed RF attenuator manufactured by L-com, designed for in-line signal reduction applications. It provides a precise attenuation value of 9dB with a power handling capacity of 2W. The device operates within a frequency range of 0 Hz to 4 GHz and maintains a characteristic impedance of 50 Ohms. Constructed from brass with electroplating, it features BNC plug-to-jack connectors. The unit supports an operating temperature range extending up to +125°C, ensuring stability in various environments.

Feature Summary

• Provides stable 9dB signal attenuation for RF applications
• Features durable brass body construction with electroplating
• Utilizes BNC plug and jack interface for easy integration

Applications

• RF signal level adjustment in test and measurement equipment
• Signal conditioning in wireless communication systems
• Attenuation in industrial automation control circuits

Procurement Notes

Verify the specific part number LCAT7437-9 against manufacturer documentation to confirm the 9dB attenuation value and 50 Ohm impedance. Ensure compatibility with existing BNC connector interfaces and check that the 2W power rating meets system requirements. Confirm the operating temperature range aligns with environmental conditions before procurement.

Selection Notes

Select this component when a fixed 9dB reduction is required at frequencies up to 4 GHz. Consider the 2W power handling capability and brass construction for durability. Ensure the BNC connector type matches the system's male/female port configuration. Verify impedance matching to prevent signal reflection in 50 Ohm systems.

Part Context

This component belongs to L-com's passive connectorized attenuator series. It is part of a family offering various attenuation values, such as 3dB, 15dB, and 30dB models, all sharing similar BNC connector styles and power ratings. These devices are engineered for consistent performance in RF signal management tasks across electronic and telecommunications industries.

Replacement Considerations

Pasternack PE7437-9 is identified as a parameter-equivalent substitute. Verify mechanical dimensions and connector tolerances to ensure physical compatibility. Confirm electrical specifications, including attenuation accuracy and VSWR, match the original design requirements before substitution.
