LCAT7438-6

Overview

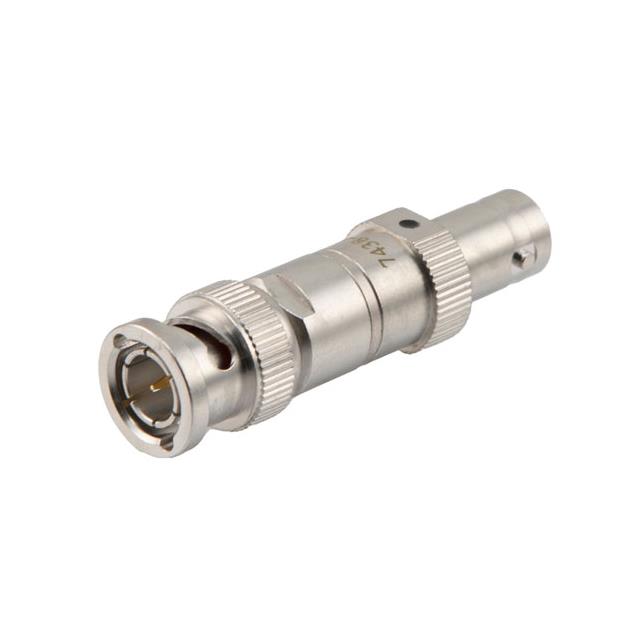

The LCAT7438-6 is a fixed attenuator manufactured by L-com, designed for 75 Ohm impedance circuits. It provides a nominal attenuation of 6 dB with an accuracy of ±0.5 dB. The device operates within a frequency range from DC to 4 GHz and supports a maximum power handling capacity of 2 Watts continuous wave. Key electrical performance metrics include a Voltage Standing Wave Ratio (VSWR) of less than 1.35:1. The component utilizes a coaxial package configuration featuring BNC male connectors on both the input and output sides, ensuring compatibility with standard 75 Ohm RF infrastructure.

Feature Summary

• Provides precise signal attenuation in 75 Ohm systems
• Operates effectively across a wide frequency spectrum up to 4 GHz
• Features robust power handling capabilities for continuous wave applications

Applications

• Signal level adjustment in broadcast video distribution networks
• Impedance matching in professional audio and video transmission lines
• RF test and measurement setups requiring specific attenuation values

Procurement Notes

Verify the part number LCAT7438-6 against official L-com documentation to ensure authenticity. Confirm that the required specifications match the 6 dB attenuation, 75 Ohm impedance, and BNC connector type. Check for any specific manufacturing date codes or lot numbers if traceability is required for critical applications. Ensure the supplier provides valid certification of origin.

Selection Notes

Select this component when a fixed 6 dB reduction is needed in a 75 Ohm environment. It is suitable for applications requiring stable performance up to 4 GHz. Consider the 2 Watt power rating to ensure it exceeds the expected signal power levels. The BNC interface dictates compatibility with existing cabling and equipment connectors.

Part Context

This model belongs to L-com's line of fixed attenuators, which are passive components used to reduce signal strength without distorting the waveform. These devices are essential for maintaining signal integrity in high-frequency circuits. The LCAT7438-6 specifically addresses the needs of 75 Ohm systems, distinguishing it from 50 Ohm variants commonly found in general RF applications.

Replacement Considerations

Direct substitutes must match the 6 dB attenuation value, 75 Ohm impedance, and BNC-to-BNC connector configuration. Verify that alternative parts support the same DC to 4 GHz frequency range and meet or exceed the 2 Watt power handling requirement. Ensure VSWR specifications remain below 1.35:1 for equivalent performance.
