LCAT7438-8

Overview

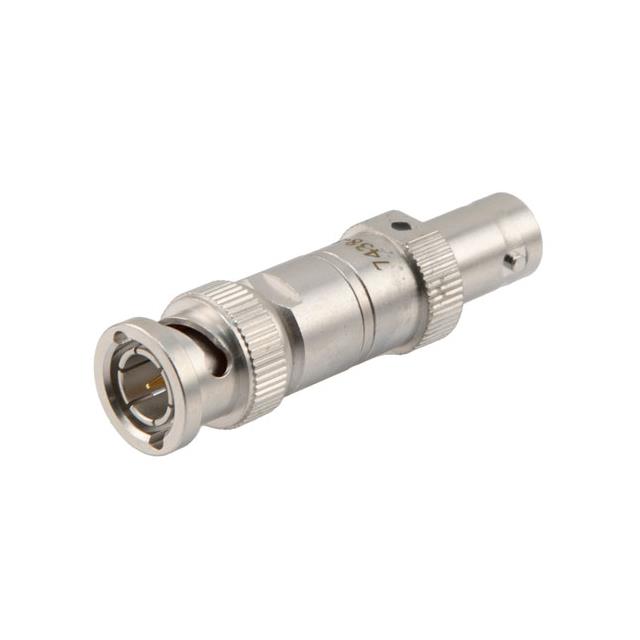

The LCAT7438-8 is a fixed RF attenuator manufactured by L-com, designed for use in 75 Ohm impedance systems. It provides a precise attenuation value of 8dB across a frequency range of 0 Hz to 4 GHz. The component is rated for a power handling capacity of 2 Watts and features BNC connectors, specifically configured as a plug-to-jack inline module. This device serves as a passive signal conditioning element within radio frequency circuits.

Feature Summary

• Provides fixed 8dB signal attenuation
• Operates with 75 Ohm system impedance
• Supports frequency range up to 4 GHz
• Features BNC male-to-female inline connection

Applications

• RF signal level adjustment in broadcast systems
• Impedance matching in 75 Ohm video transmission lines
• Signal protection in wireless communication infrastructure
• Test and measurement equipment calibration

Procurement Notes

Verify the part number LCAT7438-8 against official L-com documentation to confirm the 8dB attenuation value and 75 Ohm impedance specifications. Ensure compatibility with existing BNC connector interfaces and validate that the 2W power rating meets system requirements. Cross-reference datasheets to confirm the 0 Hz to 4 GHz operational range before integration into circuit designs.

Selection Notes

Select this component when a fixed 8dB reduction is required in a 75 Ohm environment. The BNC interface suits applications requiring reliable coaxial connections. Consider the 4 GHz frequency limit and 2W power handling when evaluating suitability for specific RF signals. Ensure the inline form factor fits within the physical constraints of the installation space.

Part Context

This model belongs to L-com's line of fixed attenuators, which are passive components used to reduce signal strength without distortion. These devices are essential for maintaining signal integrity in high-frequency applications. The LCAT series typically offers various attenuation values and impedance options to suit diverse RF system requirements.

Replacement Considerations

Consult L-com catalogs for alternative models with similar 8dB attenuation and 75 Ohm impedance. Verify connector type compatibility and frequency range overlap. Ensure any substitute maintains the 2W power rating and BNC interface configuration to preserve system performance and physical fit.
