LCFE080602A750TG

Common Mode Chokes Overview

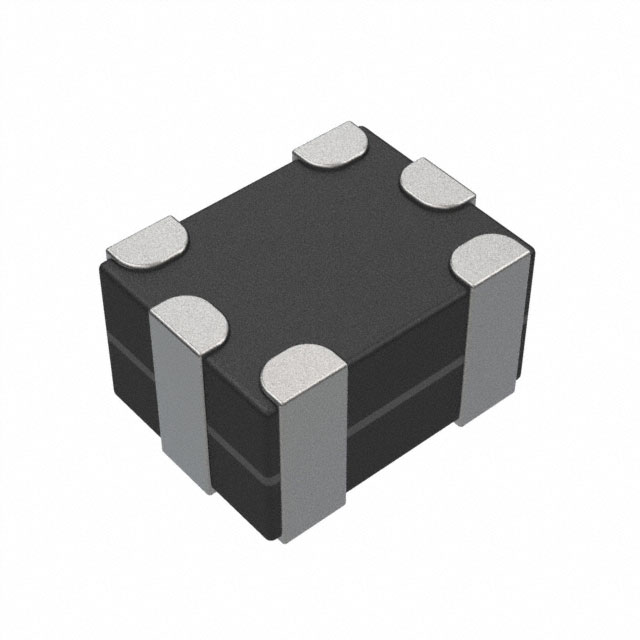

The Littelfuse LCFE080602A750TG is a surface-mount common mode choke designed for high-speed differential line filtering. It features two channels with an impedance of 75 Ohms at 100 MHz and a tolerance of 25%. The component supports a maximum DC current of 100 mA and has a maximum DC resistance of 6 Ohms. It operates within a temperature range of -40°C to +85°C. The device is housed in a compact 0806-4 package, measuring 0.87 mm in length, 0.67 mm in width, and 0.5 mm in height.

Common Mode Chokes Feature Summary

• Provides effective suppression of common mode noise with high insertion loss exceeding -62 dB in the GHz range.
• Features high differential mode cut-off characteristics suitable for signal integrity protection.
• Designed for ESD protection and signal integrity in compact electronic assemblies.

Common Mode Chokes Applications

• High-speed differential line filtering
• ESD protection in compact electronic assemblies
• Signal integrity enhancement

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official Littelfuse documentation to ensure correct impedance and current ratings. Confirm RoHS compliance status through the manufacturer's datasheet. Check for any specific handling requirements related to the SMD package during assembly. Ensure the operating temperature range aligns with the application environment specifications.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise suppression for high-speed data lines. Consider the 100 mA current rating and 6 Ohm DC resistance for power budget calculations. The 0806 footprint allows for space-constrained layouts. Evaluate the -62 dB attenuation performance against system EMC requirements.

Common Mode Chokes Part Context

This component belongs to the LCFE series of common mode chokes from Littelfuse. These devices are engineered for surface mount technology applications. The series focuses on providing robust EMI filtering solutions for modern electronic systems. The LCFE080602A750TG specifically targets differential signal lines requiring precise impedance matching.

Common Mode Chokes Replacement Considerations

Consult Littelfuse official documentation for verified substitute part numbers within the LCFE series or equivalent product lines. Cross-reference impedance values and current ratings before substitution. Verify package compatibility and thermal characteristics with alternative components.
