LCMXO2-1200ZE-1UWG25ITR1K

Field Programmable Gate Array Overview

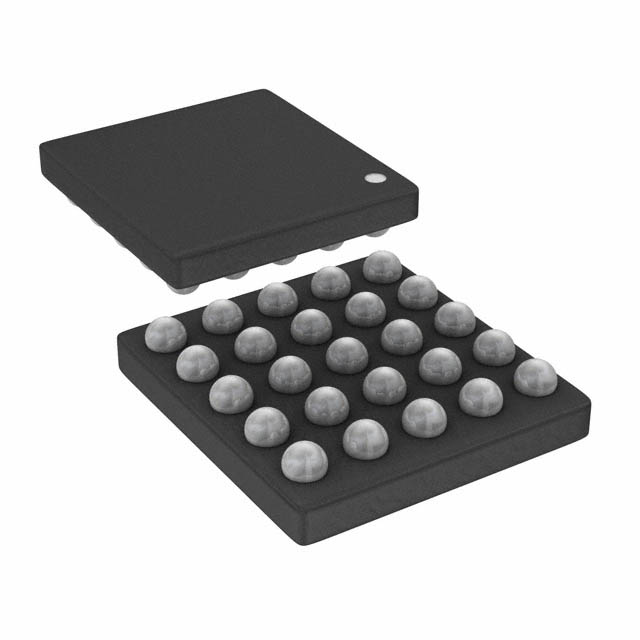

The LCMXO2-1200ZE-1UWG25ITR1K is a Field Programmable Gate Array (FPGA) belonging to the MachXO2 series, manufactured by Lattice Semiconductor Corporation. This device features 1280 logic elements and 64 Adaptive Logic Modules (ALMs), providing sufficient capacity for low-density programmable logic applications. It incorporates 65536 bits of embedded RAM and supports 18 user I/O pins. The component operates within a supply voltage range of 1.14V to 1.26V and is rated for industrial temperature conditions spanning from -40°C to +100°C junction temperature. It utilizes a 25-pin Ultra-Fine Ball Grid Array or Wafer-Level Chip Scale Package (25-UFBGA/WLCSP) for surface-mount installation.

Field Programmable Gate Array Feature Summary

• Supports infinite reconfiguration capabilities through embedded flash technology
• Integrates optimized Look-Up Table architecture with embedded memory resources
• Enables system-level integration with reduced static power consumption

Field Programmable Gate Array Applications

• Telecommunications infrastructure interface management
• Computing peripheral control and signal buffering
• High-end industrial automation logic control
• Mobile computing and GPS device interconnects
• Digital camera subsystem configuration

Field Programmable Gate Array Procurement Notes

Verify the specific package marking and revision level against the manufacturer's latest Product Change Notification documents before procurement. Confirm that the trailing suffix corresponds exactly to the required tape-and-reel quantity and temperature grade. Cross-reference the date code to ensure compliance with current RoHS directives and material declarations provided in the official datasheet.

Field Programmable Gate Array Selection Notes

Select this component when designing systems requiring non-volatile programmability without external configuration memory. Ensure the design constraints align with the 1.2V core voltage requirements and the specific I/O count limitations of the 25-pin package. Evaluate thermal dissipation needs given the junction temperature rating and compare performance metrics against higher-density MachXO2 variants if additional logic resources are anticipated.

Field Programmable Gate Array Part Context

This part belongs to the MachXO2 family, which combines 65nm embedded flash process technology with high logic density. The series targets applications demanding low power consumption and high reliability. Variants within the family differ primarily in logic block counts, I/O availability, and physical packaging options such as QFN, TQFP, and WLCSP formats.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements within the same package may include other LCMXO2-1200ZE variants with different speed grades or temperature ranges, such as LCMXO2-1200ZE-1UWG25I. Verify functional equivalence regarding logic capacity and memory size before substitution.
