LCMXO2-2000ZE-1UWG49ITR1K

Field Programmable Gate Array Overview

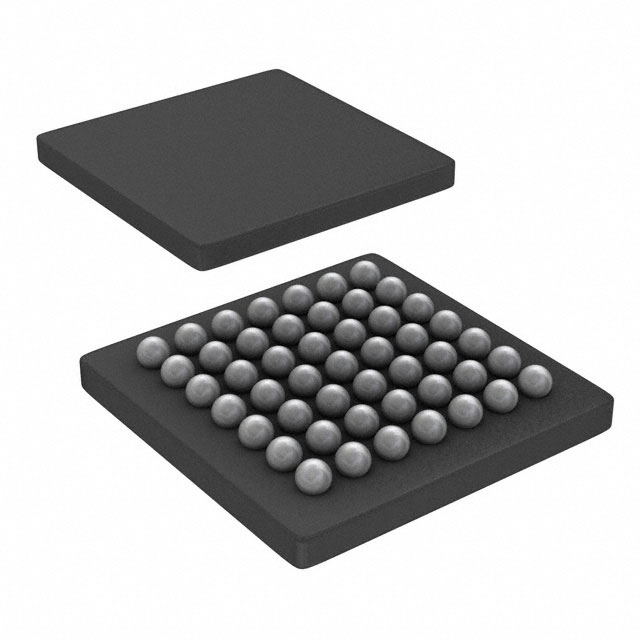

The LCMXO2-2000ZE-1UWG49ITR1K is a Field Programmable Gate Array (FPGA) from the MachXO2 family, manufactured by Lattice Semiconductor Corporation. It features 2112 logic elements and 264 Logic Array Blocks (LABs). The device includes 75,776 bits of total embedded RAM. It supports up to 40 I/O pins and operates within a supply voltage range of 1.14V to 1.26V. The component is housed in a 49-UFBGA, WLCSP package with dimensions of 3.11x3.19 mm. It is rated for an operating temperature range of 0°C to 85°C.

Field Programmable Gate Array Feature Summary

• Utilizes non-volatile flash-based technology for instant-on functionality without external configuration memory.
• Integrates significant embedded block RAM resources relative to its logic density for data buffering and processing.
• Offers a compact wafer-level chip-scale package suitable for space-constrained portable designs.

Field Programmable Gate Array Applications

• Portable consumer electronics requiring low power consumption and small form factors.
• Industrial control systems needing reliable non-vatile reprogrammability.
• Automotive infotainment and sensor interface modules.

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'TR1K' indicates tape and reel packaging containing 1000 units per reel, distinct from cut-tape or tray options. Confirm the 'I' designation corresponds to the industrial temperature grade of 0°C to 85°C junction temperature. Ensure compatibility with standard WLCSP assembly processes and moisture sensitivity levels defined in the datasheet. Cross-reference the manufacturer part number against current production status to avoid obsolete stock.

Field Programmable Gate Array Selection Notes

Select this model when design requirements specify approximately 2000 logic cells with substantial embedded memory. The 49-ball WLCSP package is optimal for high-density PCB layouts where footprint area is limited. Consider the 1.2V core voltage for battery-operated applications. Compare against the LCMXO2-2000ZE variants if different pin counts or package types like FTBGA are required instead of the ultra-small WLCSP option.

Field Programmable Gate Array Part Context

This component belongs to the MachXO2 series, which bridges the gap between complex CPLDs and traditional FPGAs. The series is characterized by its low-power flash architecture, allowing for rapid prototyping and field updates. The 2000LE tier provides a balance of logic capacity and cost-effectiveness for mid-range programmable logic needs within the Lattice portfolio.

Field Programmable Gate Array Replacement Considerations

Direct functional substitutes include other LCMXO2-2000ZE variants with different packages such as LCMXO2-2000ZE-3FTG256C or LCMXO2-2000ZE-2TG100I, provided pinout compatibility is addressed via retargeting. No cross-manufacturer direct replacements exist due to proprietary architecture differences.
