LCMXO2280C-4B256I

Field Programmable Gate Array Overview

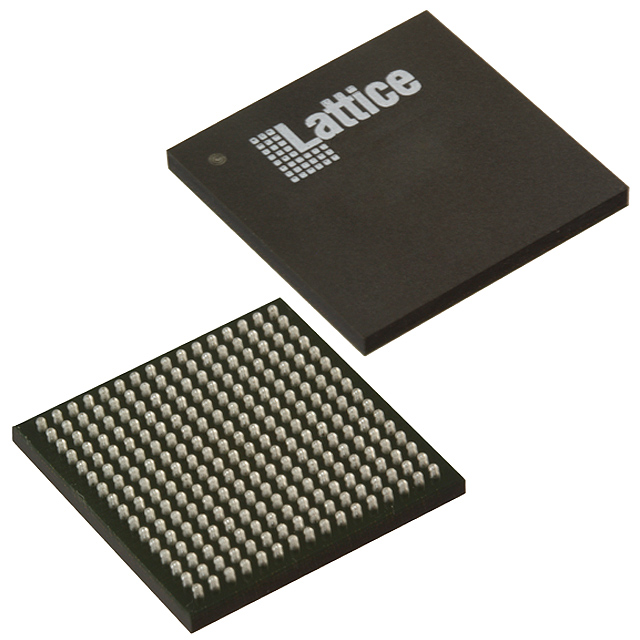

The LCMXO2280C-4B256I is a non-volatile, infinitely reconfigurable Programmable Logic Device (PLD) from the MachXO family. It features 2280 Look-Up Tables (LUTs), 1140 Adaptive Logic Modules (ALMs), and 285 Logic Array Blocks (LABs). The device includes 27.6 Kbits of Embedded Block RAM (EBR) and 7.7 Kbits of Distributed RAM. It supports up to 211 I/Os with flexible sysIO buffers compatible with LVCMOS, LVTTL, PCI, LVDS, Bus-LVDS, LVPECL, and RSDS standards. Two analog sysCLOCK PLLs provide clock multiplication, division, and phase shifting. Operating voltages include 3.3V, 2.5V, 1.8V, and 1.2V. The device operates within a temperature range of -40°C to +100°C and is housed in a 256-ball FTBGA package.

Field Programmable Gate Array Feature Summary

• Non-volatile Flash-based architecture enabling instant-on operation without external configuration memory.
• Supports TransFR technology for in-field logic updates while the system remains operational.
• Flexible sysIO buffers accommodate a wide range of interface standards including LVDS and PCI.
• Integrated sysMEM embedded block RAM and distributed RAM for efficient data storage.

Field Programmable Gate Array Applications

• Bus bridging and bus interfacing
• Glue logic implementation
• Power-up control and management
• General purpose I/O expansion

Field Programmable Gate Array Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct package type and speed grade. Confirm that the component meets all required environmental specifications for the intended application environment. Check for any recent revisions to the datasheet that may impact pin compatibility or electrical characteristics.

Field Programmable Gate Array Selection Notes

Select this device for applications requiring low-density programmable logic with non-volatile configuration. Ensure the design utilizes the available embedded memory resources efficiently. Verify that the I/O voltage requirements match the system's power supply rails. Consider the thermal performance if operating at maximum frequency or temperature limits.

Field Programmable Gate Array Part Context

This part belongs to the Lattice MachXO family, which combines CPLD-like instant-on capabilities with FPGA flexibility. The MachXO series is designed for cost-sensitive, low-power applications traditionally served by CPLDs or small FPGAs. It offers high integration through embedded memory and PLLs.

Field Programmable Gate Array Replacement Considerations

Direct replacements within the MachXO family include LCMXO2280C-3FTN256I and LCMXO2280E-4B256I, subject to speed grade and commercial/industrial temperature range availability. Cross-family migration to MachXO2 or MachXO3 requires careful review of pinout and feature differences.
