LCMXO2280E-5FT324C

Field Programmable Gate Array Overview

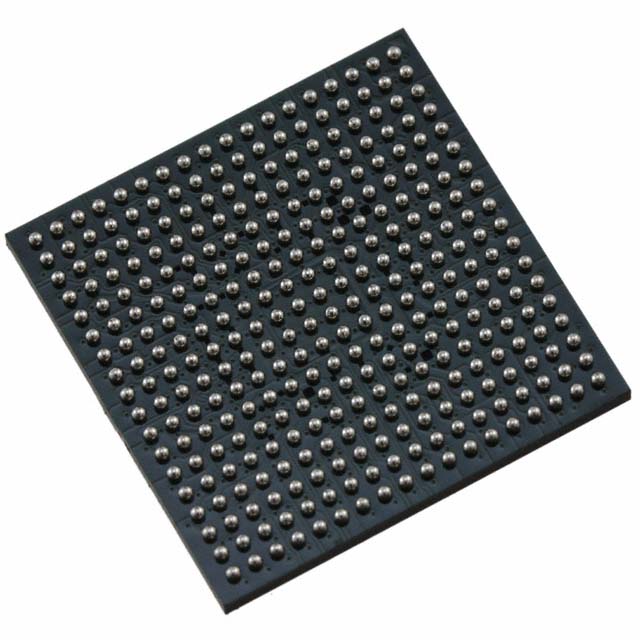

The Lattice MachXO2280E-5FT324C is a non-volatile, infinitely reconfigurable FPGA featuring 2280 logic cells and up to 271 I/Os in a 324-ball ftBGA package. It integrates three sysMEM Embedded Block RAM blocks totaling 27.6 Kbits and two analog sysCLOCK PLLs for clock management. The device supports flexible I/O standards including LVCMOS, LVDS, and PCI, operates with core voltages of 1.2V, 1.8V, 2.5V, or 3.3V, and provides instant-on configuration from internal flash without external memory.

Field Programmable Gate Array Feature Summary

• Non-volatile architecture enabling instant-on operation and background programming via internal flash.
• Infinitely reconfigurable SRAM-based logic allowing in-field updates using TransFR technology.
• High I/O density supporting diverse interface standards through programmable sysIO buffers.
• Integrated embedded block RAM and distributed RAM for efficient data storage and processing.

Field Programmable Gate Array Applications

• Glue logic implementation replacing traditional CPLDs
• Bus bridging and interface conversion between different protocol standards
• Power-up control and sequencing logic for system management
• General-purpose I/O expansion in industrial and computing systems

Field Programmable Gate Array Procurement Notes

Verify the specific speed grade suffix '5' against the official datasheet timing specifications to ensure it meets your system's clock frequency requirements. Confirm that the FT324 package dimensions align with your PCB footprint constraints. Ensure design tools support the MachXO family for proper synthesis and place-and-route operations.

Field Programmable Gate Array Selection Notes

Select this device when designs require high pin counts combined with moderate logic density and embedded memory resources. The inclusion of dual PLLs makes it suitable for applications needing precise clock generation and phase shifting. Consider the EBR capacity for FIFO implementations or data buffering needs within the system architecture.

Field Programmable Gate Array Part Context

This component belongs to the MachXO family, which bridges the gap between CPLDs and low-capacity FPGAs. It combines the security and instant-on features of CPLDs with the flexibility and embedded memory of FPGAs. The family is optimized for system control applications requiring high reliability and low power consumption.

Field Programmable Gate Array Replacement Considerations

Devices within the same MachXO family such as LCMXO1200 offer lower density but may fit smaller packages. For higher density requirements, consider larger MachXO variants if pin count compatibility allows. Verify pin-to-pin compatibility before substituting with other Lattice PLD families.
