LCMXO3D-9400ZC-2BG256I

Field Programmable Gate Array Overview

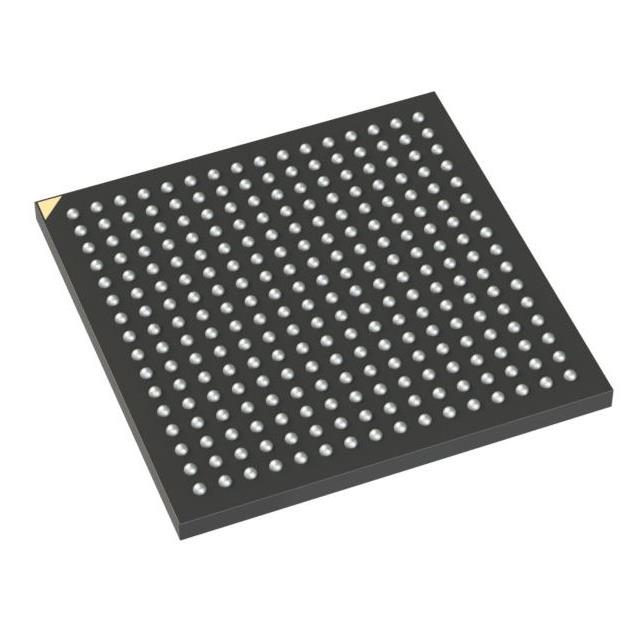

The LCMXO3D-9400ZC-2BG256I is a Field Programmable Gate Array from the Lattice MachXO3D family, manufactured by Lattice Semiconductor Corporation. It features 9400 logic elements and 1175 Adaptive Logic Modules within a 256-pin CABGA package. The device supports dual voltage operation at 2.5V or 3.3V, with an operating range of 2.375V to 3.465V. It includes 432 kbit of embedded block RAM and 73 kbit of distributed RAM. The component operates within a commercial temperature range of 0°C to +85°C and supports data rates up to 900 Mb/s.

Field Programmable Gate Array Feature Summary

• Supports dual voltage operation for flexible system integration
• Includes integrated non-volatile configuration memory
• Features low power consumption architecture

Field Programmable Gate Array Applications

• Industrial control systems
• Consumer electronics interfaces
• Automotive infotainment subsystems

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'ZC' against official Lattice documentation to confirm its exact functional implications, as standard datasheets may not detail every variant's unique characteristics. Ensure the industrial temperature grade 'I' matches the target environmental requirements. Confirm RoHS compliance status through the manufacturer's current certification records before finalizing procurement specifications.

Field Programmable Gate Array Selection Notes

Select this model when dual voltage support (2.5V/3.3V) is required alongside moderate logic density. Compare it against the LCMXO3LF series if single 3.3V operation suffices, or the LCMXO3L series if lower 1.2V power consumption is critical. Verify that the 256-pin CABGA package fits the board layout constraints and that the 9400 LE count meets the design complexity needs without excessive overhead.

Field Programmable Gate Array Part Context

This component belongs to the MachXO3D family, which targets applications requiring dual voltage flexibility. It sits between the higher-power LCMXO3L series and the single-voltage LCMXO3LF series in terms of power and voltage specifications. The family is designed for cost-sensitive, low-to-medium density FPGA applications where non-volatile configuration and low power are key drivers.

Field Programmable Gate Array Replacement Considerations

Direct pin-compatible replacements within the same package and density include other variants from the LCMXO3D family, such as LCMXO3D-9400HC-5BG256I, provided speed grades and voltage requirements align. Cross-family replacements like LCMXO3LF-9400C-6BG256C require verification of voltage compatibility since the LF series typically operates only at 3.3V.
