LCRNJ12575GL102MN

Fixed Inductors Overview

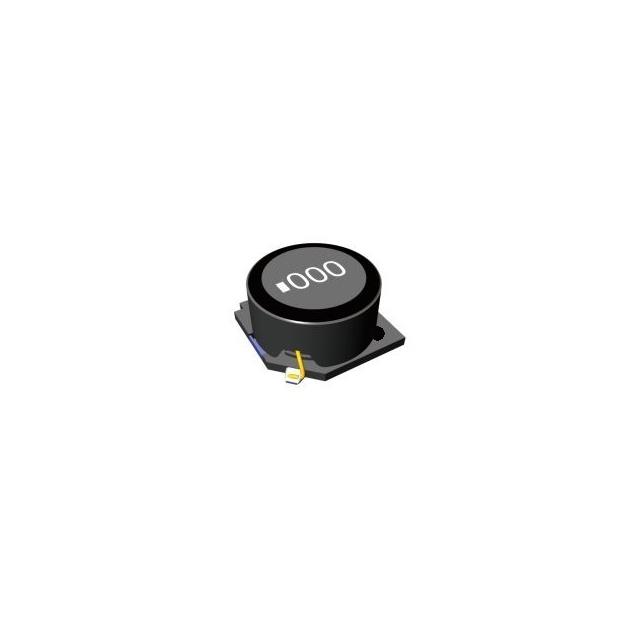

The LCRNJ12575GL102MN is a shielded wirewound power inductor from the LCRN series by Taiyo Yuden. It features an inductance of 1 mH with a tolerance of ±20%. The component has a maximum DC current rating of 530 mA and a maximum DC resistance of 1.17 Ohms. Measuring 12.5 mm in length, 12.5 mm in width, and 7.5 mm in height, it utilizes a ferrite core. The device operates within a temperature range of -40°C to +125°C and meets AEC-Q200 automotive standards.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• AEC-Q200 qualified for automotive reliability
• Ferrite core wirewound design

Fixed Inductors Applications

• Automotive body electronics systems
• Power supply filtering circuits
• DC-DC converter output stages

Fixed Inductors Procurement Notes

Verify the specific suffix and full part number against official Taiyo Yuden documentation to ensure correct specifications. Confirm AEC-Q200 compliance requirements for your application. Check for any recent Product Change Notifications that may affect performance or packaging. Ensure compatibility with your PCB footprint dimensions.

Fixed Inductors Selection Notes

Select this component when shielding is required to reduce magnetic field emissions in compact spaces. Consider the 1.17 Ohm DC resistance for efficiency calculations in low-current applications. Verify that the 530 mA current rating meets the peak load requirements of the target circuit without saturation.

Fixed Inductors Part Context

This part belongs to the LCRN series of fixed power inductors designed specifically for automotive applications. The series offers shielded options to meet strict electromagnetic compatibility standards in vehicles. It complements other SMD inductors by providing reliable performance in harsh thermal environments typical of modern electronic control units.

Fixed Inductors Replacement Considerations

NS12575T102MNV is a listed alternate part number.
