LCW JNSH.PC-BRBT-5H7I-1

LED Indication - Discrete Overview

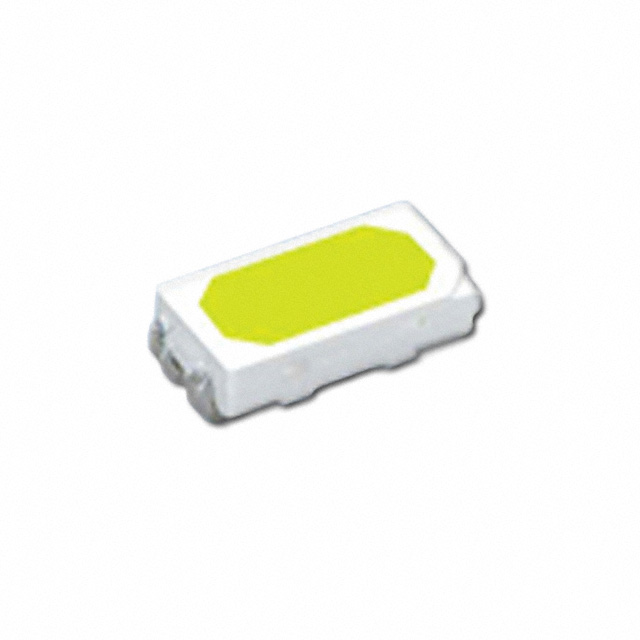

The LCW JNSH.PC-BRBT-5H7I-1 is a cool white surface-mount LED from the DURIS E3 series by ams OSRAM. It features a rectangular lens with a flat top and diffused transparency, housed in a compact 2-SMD J-leads package measuring 3.00mm x 1.40mm x 1.2mm. The device operates at a forward voltage of 3.4V and produces 7.4 lumens of light flux at a test current of 20mA. With a color temperature of 5000K and a wide 120-degree viewing angle, it provides uniform illumination suitable for indicator applications.

LED Indication - Discrete Feature Summary

• Emits cool white light with a 5000K color temperature
• Features a diffused rectangular lens for uniform light distribution
• Designed for surface-mount installation with J-shaped leads
• Provides high luminous intensity within a compact footprint

LED Indication - Discrete Applications

• Status indicators in electronic equipment
• Backlighting for control panels
• General-purpose signaling devices

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized channels as this part may be discontinued. Confirm RoHS3 compliance and moisture sensitivity level (MSL) ratings prior to soldering. Ensure storage conditions meet manufacturer specifications to prevent degradation. Cross-reference datasheet parameters against specific design requirements before finalizing procurement decisions.

LED Indication - Discrete Selection Notes

Select this component when a compact, high-intensity cool white indicator is required. The 120-degree viewing angle ensures broad visibility. Verify that the 3.4V forward voltage aligns with the driving circuit capabilities. Consider the 2-SMD J-lead package for automated assembly compatibility and space-constrained PCB layouts.

LED Indication - Discrete Part Context

This LED belongs to the DURIS E3 family, known for high reliability and compact dimensions. It serves as a discrete indicator solution within ams OSRAM's optoelectronics portfolio. The product utilizes advanced semiconductor technology to deliver consistent performance in small form factors, targeting modern electronics requiring efficient and durable lighting components.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official ams OSRAM resources for potential obsolescence management or equivalent series replacements.
